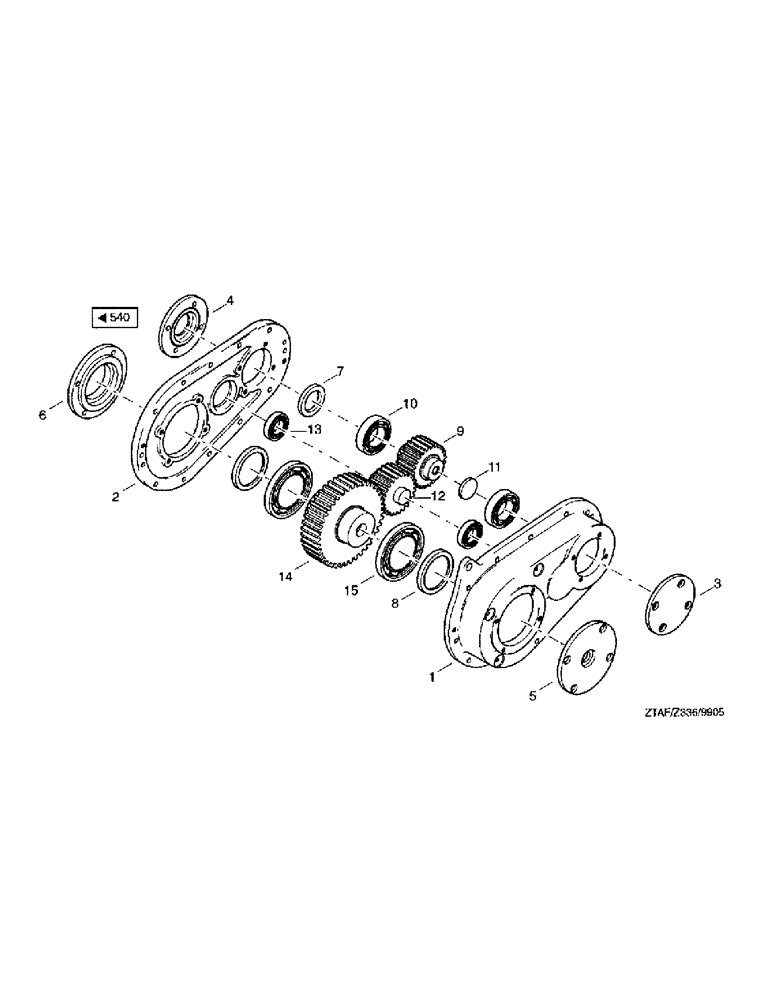

Запчасти Case IH 8790 (257) - GEARBOX, ROLL BOTTOM (14) - MAIN GEARBOX & DRIVE

1

03254150

HOUSING

2шт.

2

02820293

HOUSING

PLATE

2шт.

3

02820332

VANEUM GAUGE

COVER

2шт.

4

02820381

GASKET

CAPE seal

2шт.

5

02820340

VANEUM GAUGE

COVER

2шт.

6

02820398

GASKET

CAPE seal

2шт.

7

01118137

PACKING RING

SEAL shaft, AS50 x 72 x 8 DIN3760 NBR

2шт.

8

01118081

PACKING RING

SEAL shaft, AS80 x 100 x 10 DIN3760 NBR

4шт.

9

02820404

WHEEL GEAR

straight spur, 19 x 5

2шт.

10

97060310

BALL BEARING

grooved ball, 6210 DIN625

4шт.

11

02820420

FILLER CAP

closing, 40 x 7

2шт.

12

02820412

GEAR

straight spu, 18 x 5

2шт.

13

97062643

BEARING

cylindrical roller, NJ 207 E DIN5412 LE SKF FAG

4шт.

14

02820437

WHEEL GEAR

straight spur, 37 x 5

2шт.

15

03661734

BEARING ASSY

grooved ball, 16016 DIN625

4шт.
