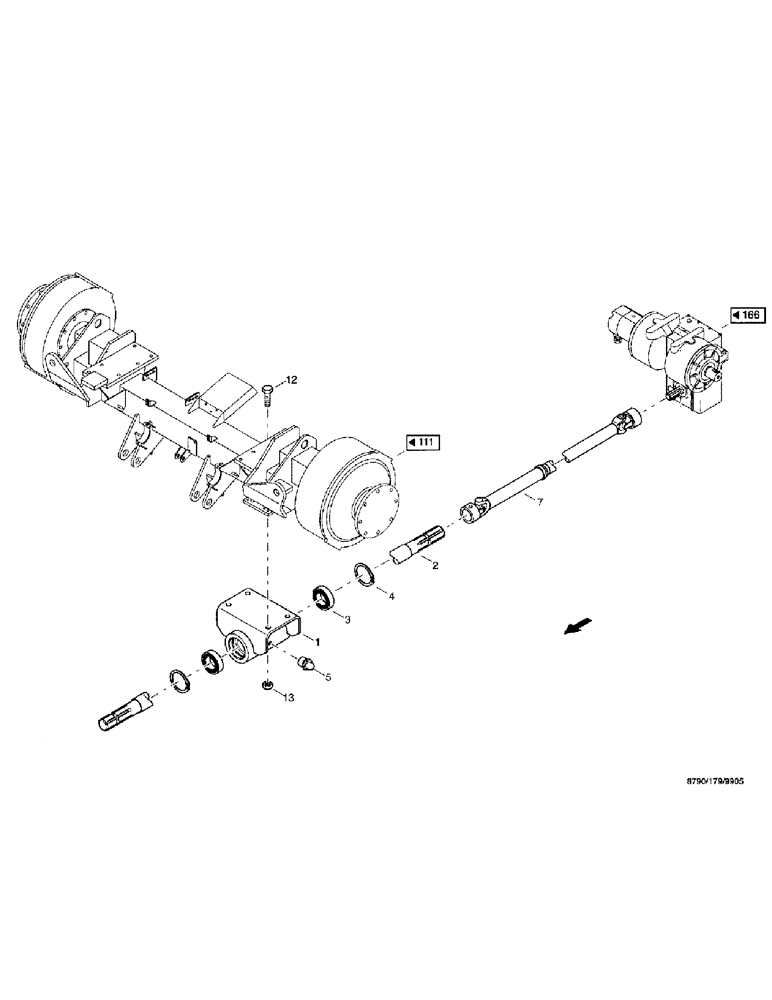

Запчасти Case IH 8790 (027) - DRIVE SYSTEM, ADAPTER DRIVE (14) - MAIN GEARBOX & DRIVE

1

36220551

HOUSING, BEARING

1шт.

2

36220568

SHAFT

1шт.

3

03671816

BALL BEARING

grooved ball, 6207-RS DIN625 LE

2шт.

4

800-2172

SNAP RING

72 x 2.5 FST, DIN472, FST

2шт.

5

03617056

LUBE NIPPLE

grease, AM8 x 1 DIN71412

1шт.

7

03014160

COUPLING

SHAFT double cardan, W2500-SC25 EINST

1шт.

12

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

13

100038

NUT,M12 x 1.75, Cl 8

4шт.
