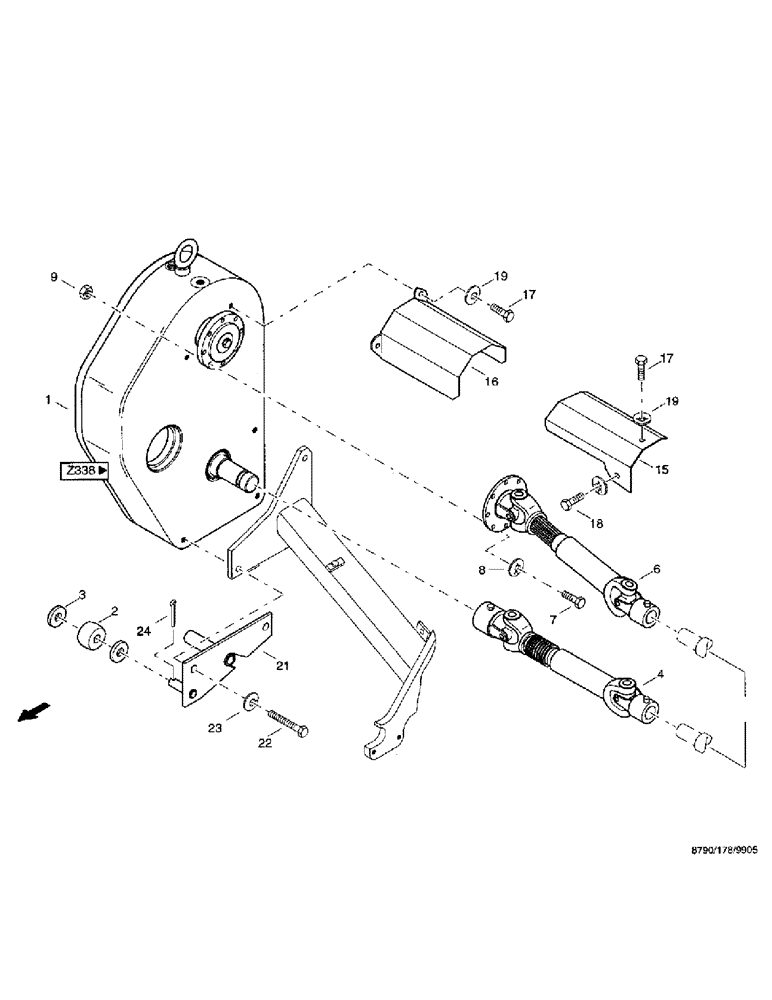

Запчасти Case IH 8790 (026) - DRIVE SYSTEM, FEED ROLL DRIVE (14) - MAIN GEARBOX & DRIVE

1

02818811

TRANSMISSION

GEAR distributor

1шт.

2

36258226

SHIFTER ROLLER

1шт.

3

895-11020

WASHER,M20 x 37 x 3

21 DIN125 ST

2шт.

4

03015514

SHAFT

double cardan, LZ=290 MIT SCHUTZBALG

1шт.

6

03015426

COUPLING

SHAFT double cardan, LZ=310 MIT SCHUTZROHR

1шт.

7

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

8шт.

8

06577028

SPECIAL WASHER

M8

8шт.

9

825-1408

NUT,M8, Cl 8

8шт.

15

36241515

PROTECTOR

GUARD

1шт.

16

36241523

PROTECTOR

GUARD

1шт.

17

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

3шт.

18

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

19

06577052

SPECIAL WASHER

locking, B10

4шт.

21

36296184

SUPPORT

holder-up

1шт.

22

814-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 8.8

3шт.

23

97022014

RING, SNAP

RING SNAP locking, VSK16 DIN

3шт.

24

06402730

PIN, SPLIT (COTTER)

PIN, COTTER splint, 5 x 32 DIN94 ST

1шт.
