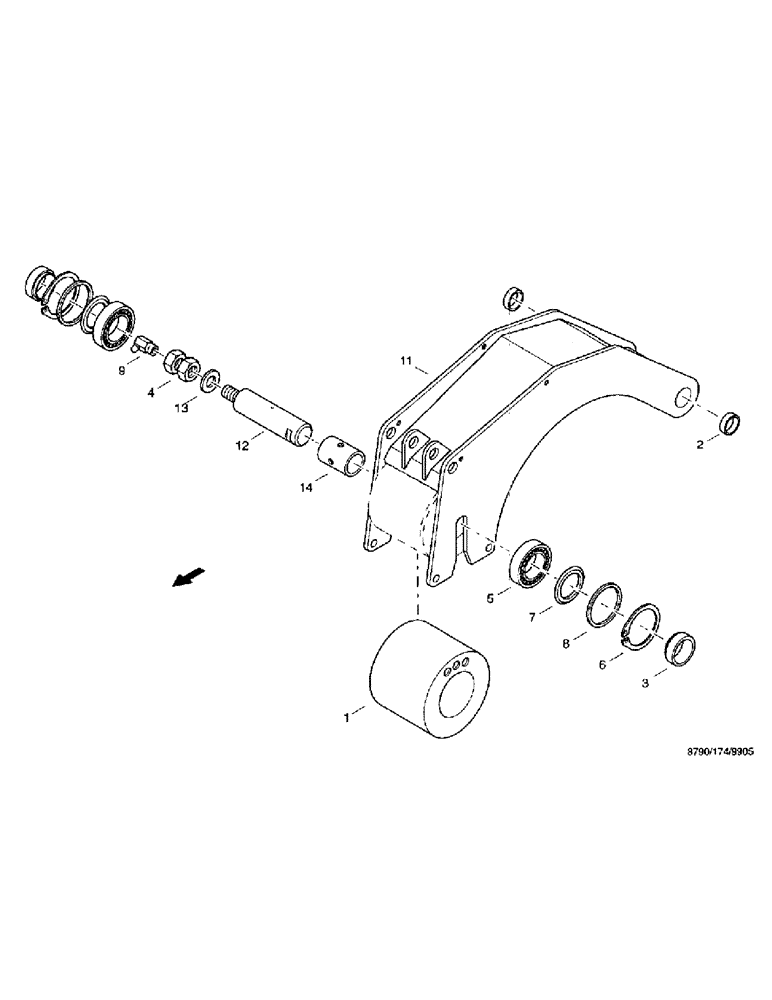

Запчасти Case IH 8790 (022) - DRIVE SYSTEM, ROCKER (14) - MAIN GEARBOX & DRIVE

1

36261496

TIGHTENER SHEAVE

IDLER

1шт.

2

01328306

BUSHING

SLEEVE, GSM-4044-20 FORM S IGLIDUR

2шт.

3

36204873

BUSHING

SLEEVE

2шт.

4

06222831

NUT

hex, M20 x 1.5 ISO8675 05

2шт.

5

03652565

BALL BEARING

grooved, 6307-RS DIN625

2шт.

6

800-2180

SNAP RING,M80, Int

2шт.

7

01116746

SEALING RING,43.1mm ID x 80mm OD x 2.5mm

COVER bearing, 6307ZJV

2шт.

8

97020323

WASHER

thrust, S63 x 80 x 3 DIN988 FST

2шт.

9

03640746

LUBE NIPPLE,45º, M8 x 1

grease, BM8 x 1 DIN71412

1шт.

11

36295230

DIPPER

ROCKER

1шт.

12

36272868

SHAFT

1шт.

13

895-11020

WASHER,M20 x 37 x 3

21 DIN125 ST

1шт.

14

36261510

SLEEVE

1шт.
