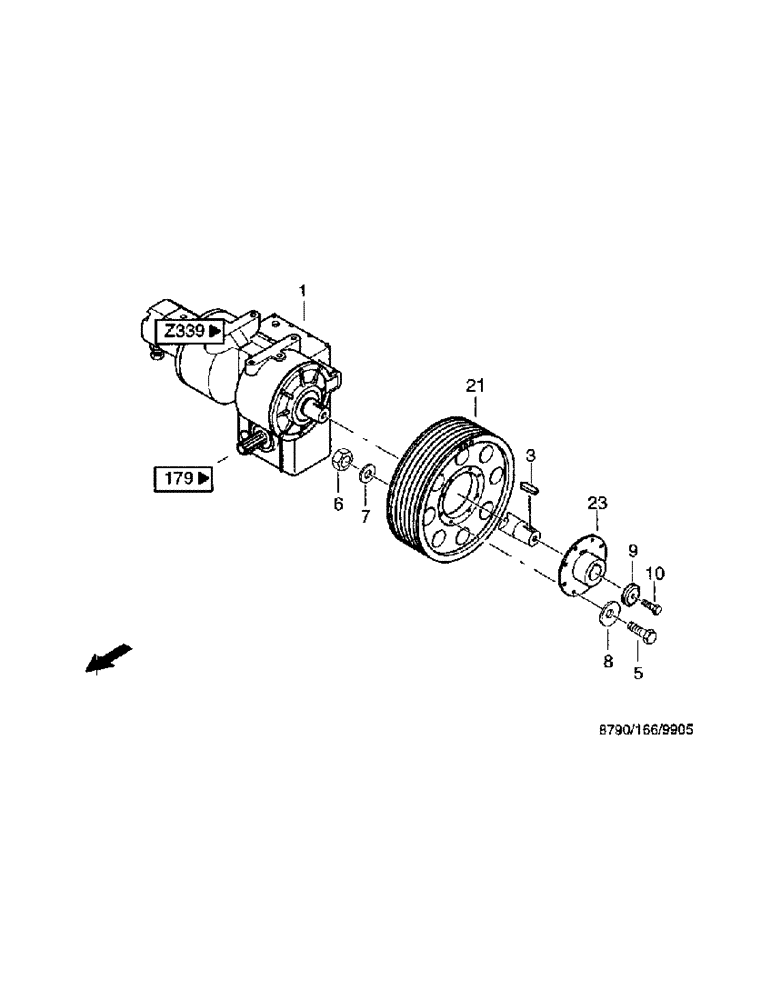

Запчасти Case IH 8790 (013) - DRIVE SYSTEM, ADAPTER GEAR (14) - MAIN GEARBOX & DRIVE

1

02824151

REVERSER

manual shift and gear

1шт.

3

03505450

BUCKET TOOTH KEY

flat, A18 x 11x 63 DIN6885 ST

1шт.

5

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

8шт.

6

825-1410

NUT,M10, Cl 8

8шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

8

06577003

SPECIAL WASHER

M10

8шт.

9

36283782

WASHER, THRUST

end

1шт.

10

614-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 8.8, Full Thd

ISO4017

1шт.

21

36270142

GROOVED PULLEY

v-belt, GG25 800M31 RZ

1шт.

23

36252093

FLANGE

800M18 RZ

1шт.
