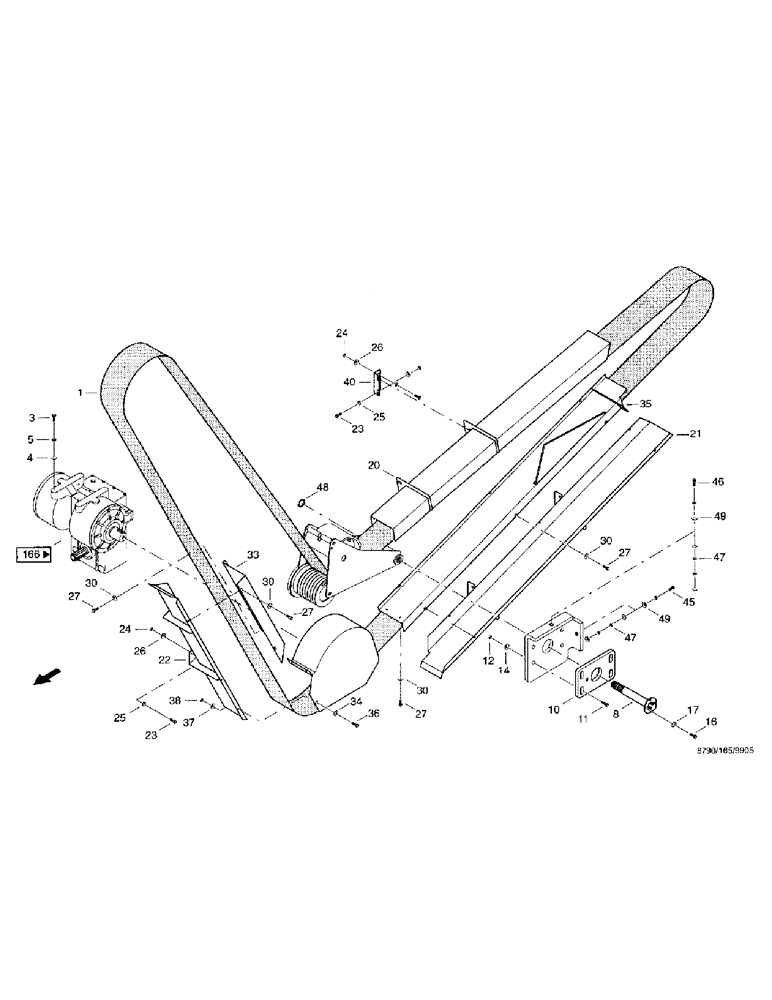

Запчасти Case IH 8790 (011) - DRIVE SYSTEM, OPERATING COMPONENT DRIVE (14) - MAIN GEARBOX & DRIVE

1

01170124

V-BELT

power band, 7HB-7790LA + /-15 KEVLAR

1шт.

3

614-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8, Full Thd

ISO4017

4шт.

4

06577093

LOCK WASHER

M16

4шт.

5

06562183

WASHER

17 DIN7349 ST

4шт.

8

36293727

SHAFT

k

1шт.

10

36293903

PLATE ASSY.

COUPLING

1шт.

11

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

12

825-1410

NUT,M10, Cl 8

4шт.

14

06577052

SPECIAL WASHER

locking, B10

8шт.

16

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

ISO4017

1шт.

17

06577028

SPECIAL WASHER

M8

1шт.

20

36290861

PROTECTIVE COVER

end of rope

1шт.

21

36290894

GUIDE

rope

1шт.

22

36270095

GUARD

ROPE cover

1шт.

23

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

18шт.

24

825-1410

NUT,M10, Cl 8

18шт.

25

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

18шт.

26

06577003

SPECIAL WASHER

M10

18шт.

27

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

14шт.

30

06577028

SPECIAL WASHER

M8

14шт.

33

36270101

COVER

CAP

1шт.

34

36270118

HOOD

sheet metal cover

1шт.

35

36290941

COVER

CAP, h

1шт.

36

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

37

06577028

SPECIAL WASHER

M8

2шт.

38

825-1408

NUT,M8, Cl 8

1шт.

40

36285743

ANGLE

4шт.

45

614-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 8.8, Full Thd

ISO4017

1шт.

46

614-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8, Full Thd

ISO4017

1шт.

47

06116235

NUT

hex, M12 DIN985 8

6шт.

48

800-1132

SNAP RING,M32, Ext

DIN471 FST

1шт.

49

06577011

PLATE, LOCKING

WASHER, M12

6шт.
