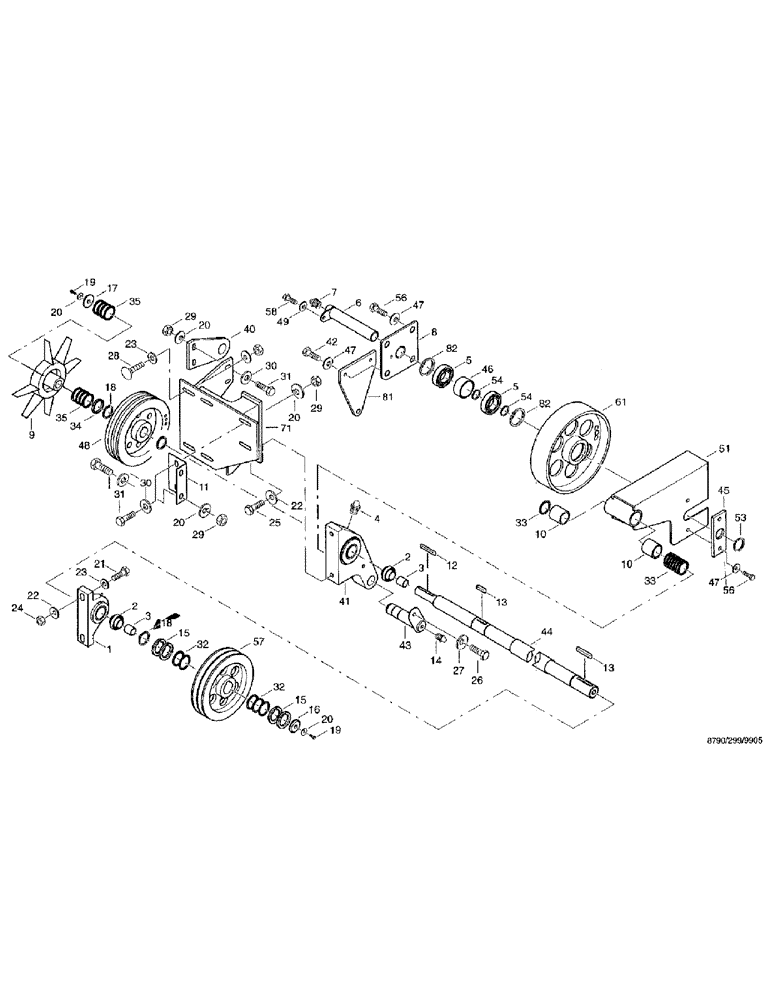

Запчасти Case IH 8790 (061) - RADIATOR SYSTEM, FAN COUNTERSHAFT (10) - ENGINE

1

03674232

HOUSING, BEARING

SY508M

1шт.

2

03674240

BEARING

YSA208/35-2FK

2шт.

3

03674257

PIN, ROLL

SLEEVE tension, H2308

2шт.

4

03617056

LUBE NIPPLE

grease, AM8 x 1 DIN71412

1шт.

5

03653357

BEARING, BALL

grooved, 6006-RS DIN625

2шт.

6

36415762

LARGE PIN

PIN, LARGE k

1шт.

7

03617056

LUBE NIPPLE

grease, AM8 x 1 DIN71412

1шт.

8

36415770

PLATE

1шт.

9

02041115

VENTILATOR

FAN multi-wing, 360/8/3L/45GRAD/PAG

1шт.

10

01308712

BUSHING

SLEEVE, 30/34 x 40BREIT

2шт.

11

36416023

ANGLE

1шт.

12

03501213

BUCKET TOOTH KEY

flat, A8 x 7 x 40 DIN6885

1шт.

13

03501342

BUCKET TOOTH KEY

flat, A10 x 8 x 36 DIN6885

2шт.

14

03617056

LUBE NIPPLE

grease, AM8 x 1 DIN71412

1шт.

15

36416570

WASHER

WASHER thrust

5шт.

16

36225226

WASHER

WASHER end

1шт.

17

36270536

WASHER, THRUST

end

1шт.

18

800-1135

SNAP RING,M35, Ext

DIN 471 FST

3шт.

19

614-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8, Full Thd

ISO 4017

2шт.

20

06577052

SPECIAL WASHER

locking, B10

8шт.

21

614-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8, Full Thd

ISO 4017

2шт.

22

06577077

PLATE, LOCKING

WASHER, M12

8шт.

23

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

6шт.

24

829-1412

NUT,M12, Cl 10.9

6шт.

25

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

26

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

27

06577028

SPECIAL WASHER

M8

1шт.

28

07753123

SCREW

flat-round-head, M12 x 35 DIN603 8.8

4шт.

29

825-1410

NUT,M10, Cl 8

6шт.

30

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

31

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

6шт.

32

97022669

WASHER

thrust, S35 x 50 x 2 DIN988 FST

5шт.

33

06623806

WASHER

30 x 42 x 2 DIN988

8шт.

34

36285807

WASHER

WASHER

1шт.

35

97020310

WASHER

thrust, S25 x 35 x 2 DIN988 FST

8шт.

40

36285807

WASHER

BEARING outrigger

1шт.

41

97022212

SHIM

HOUSING

1шт.

42

36290017

PULLEY

BOLT hexagon head, M10 x 40 ISO4017 8.8

2шт.

43

36415754

LARGE PIN

PIN, LARGE k

1шт.

44

36415658

LARGE PIN

PIN, LARGE SHAFT

1шт.

45

36415746

PLATE

STRAP

1шт.

46

36415867

BUSHING

SLEEVE

1шт.

47

06577003

SPECIAL WASHER

M10

6шт.

48

36416064

PULLEY

v-belt

1шт.

49

06577028

SPECIAL WASHER

M8

1шт.

51

36415713

DIPPER

ROCKER

1шт.

53

800-1130

SNAP RING,M30, Ext

1шт.

54

800-1130

SNAP RING,M30, Ext

2шт.

56

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

57

36290275

PULLEY

v-belt, 2SPB 800M47 RZ

1шт.

58

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

61

36415787

TIGHTENER SHEAVE

IDLER

1шт.

71

36415955

SUPPORT

BRACKET bearing

1шт.

81

36416394

PLATE

STRAP

1шт.

82

800-2155

SNAP RING,M55, Int

DIN472 FST

2шт.
