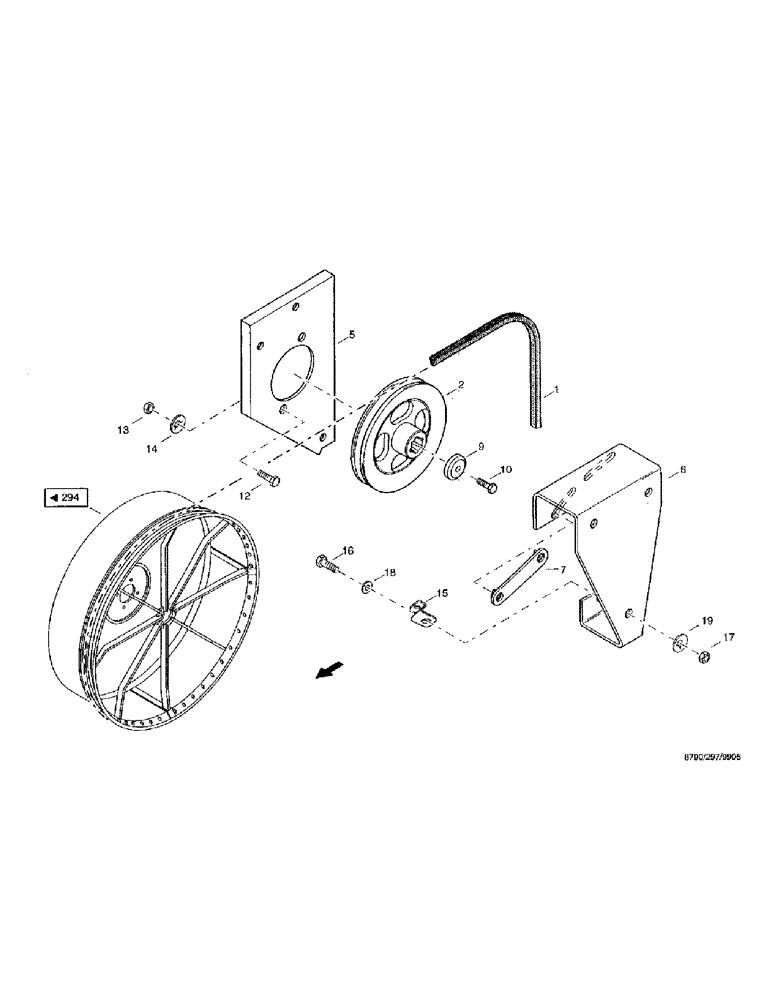

Запчасти Case IH 8790 (060) - RADIATOR SYSTEM, SCREENING CYLINDER DRIVE (10) - ENGINE

1

01113897

BELT,13.00 mm W x 4000.00 mm L

1шт.

2

36279673

SHEAVE

PULLEY v-belt, Nk

1шт.

5

36279698

PLATE

SEAT engine

1шт.

6

36279704

SHEET

PLATE attaching

1шт.

7

36280015

PLATE

nut seat

1шт.

9

36280031

WASHER

end

1шт.

10

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

12

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

13

829-1412

NUT,M12, Cl 10.9

2шт.

14

06577011

PLATE, LOCKING

WASHER, M12

2шт.

15

36280097

SHEET

spring retainer

1шт.

16

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

6шт.

17

825-1410

NUT,M10, Cl 8

4шт.

18

06562087

WASHER

10.5 DIN7349 ST

10шт.

19

06577003

SPECIAL WASHER

M10

6шт.
