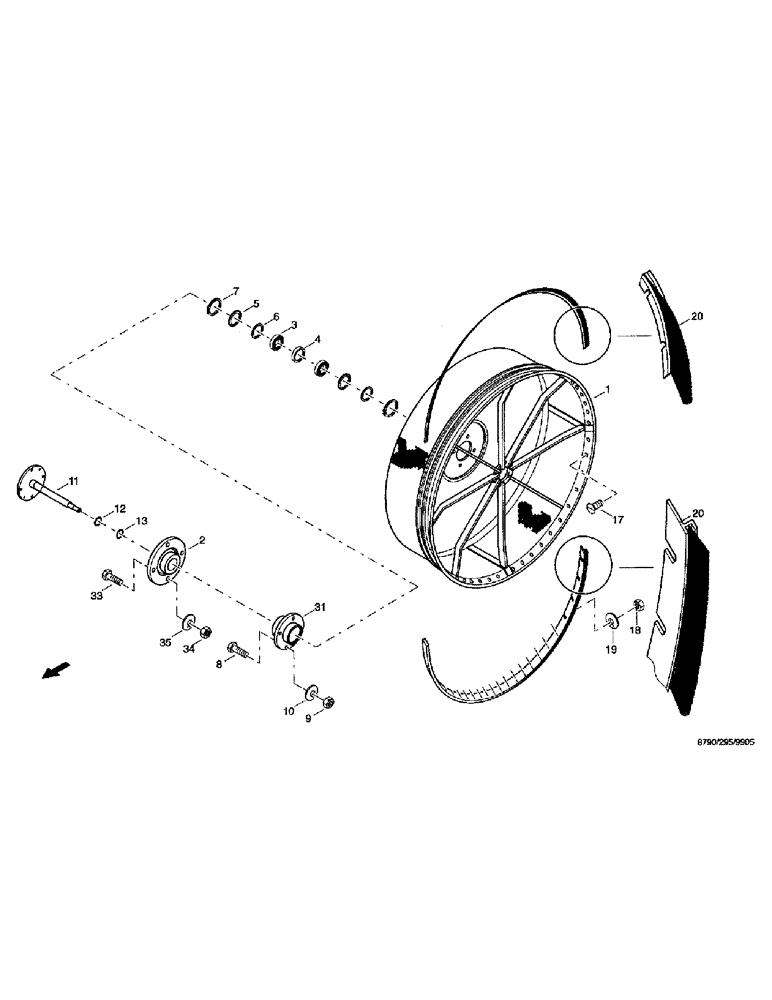

Запчасти Case IH 8790 (058) - RADIATOR SYSTEM, SCREENING CYLINDER (10) - ENGINE

1

36248361

DRUM

CYLINDER screening

1шт.

2

03672970

FLANGED BEARING,35mm ID x 28.4mm

flanged, PME35

1шт.

3

03651878

BALL BEARING

grooved ball, 6204-RS DIN625 DKFL

2шт.

4

36248892

SPACER, RING

intermediate

1шт.

5

01117048

PLASTIC RING

COVER bearing, 6204ZJV

2шт.

6

06655516

WASHER

thrust, S37 x 47 DIN988 FST

2шт.

7

800-2147

SNAP RING,M47, Int

2шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

9

825-1408

NUT,M8, Cl 8

4шт.

10

06577028

SPECIAL WASHER

M8

4шт.

11

36248667

STEM

LUG coupling

1шт.

12

36248763

SPACER

RING

1шт.

13

800-1120

SNAP RING,M20, Ext

DIN471 FST

1шт.

17

840-3610

SCREW,Pan, M6 x 10mm, Cl 4.8

Lens-head, DIN85 4.8

40шт.

18

825-1406

NUT,M6, Cl 8

40шт.

19

06577036

SPECIAL WASHER

M6

40шт.

20

03401515

SHIN

BRUSH, L = 1945 BH = 25 KH = 25 ST

2шт.

31

36248650

BEARING HOUSING

HOUSING bearing

1шт.

33

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

34

825-1410

NUT,M10, Cl 8

4шт.

35

06577003

SPECIAL WASHER

M10

4шт.
