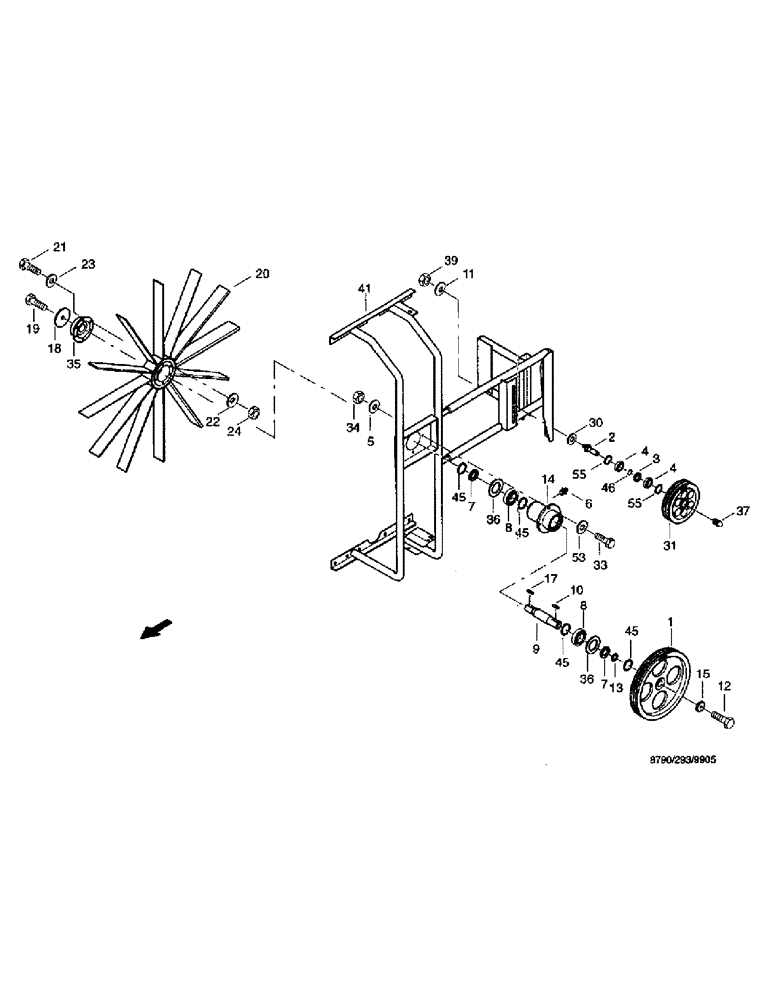

Запчасти Case IH 8790 (054) - RADIATOR SYSTEM, RADIATOR ASSEMBLY DRIVE (10) - ENGINE

1

36290468

PULLEY

v-belt, 2SPB 800M48 RZ

1шт.

2

36290732

LARGE PIN

PIN, LARGE SHAFT

1шт.

3

36290740

SPACER

SLEEVE

1шт.

4

03651314

BEARING, BALL

grooved, 6004-RS DIN625

2шт.

5

06577028

SPECIAL WASHER

M8

4шт.

6

03617056

LUBE NIPPLE

grease, AM8 x 1 DIN71412

1шт.

7

01116947

SEALING RING,42.7mm ID x 72mm OD x 2.5mm

COVER bearing, 6207ZJV-62

2шт.

8

03671816

BALL BEARING

grooved ball, 6207-RS DIN625 LE

2шт.

9

36225218

SHAFT

1шт.

10

03501342

BUCKET TOOTH KEY

flat, A10 x 8 x 36 DIN6885

1шт.

12

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

1шт.

11

06577011

PLATE, LOCKING

WASHER, M12

1шт.

19

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

1шт.

13

36249555

RING

1шт.

14

36225154

BEARING ASSY,140 mm

BEARING

1шт.

15

36225226

WASHER

WASHER, end

1шт.

17

03501342

BUCKET TOOTH KEY

flat, A10 x 8 x 36 DIN6885

1шт.

18

36225226

WASHER

WASHER, end

1шт.

20

03909276

DUCT

fan, 990/40

1шт.

21

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.

22

06577028

SPECIAL WASHER

M8

6шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

24

825-1408

NUT,M8, Cl 8

6шт.

30

06562038

WASHER

13 DIN7349 ST

1шт.

31

36290724

PULLEY

IDLER, 2SPB

1шт.

33

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

34

825-1408

NUT,M8, Cl 8

4шт.

35

36249418

HUB

GG25 800M16 RZ

1шт.

36

06655452

WASHER

thrust, S56 x 72 DIN988

2шт.

37

03617056

LUBE NIPPLE

grease, AM8 x 1 DIN71412

1шт.

39

829-1412

NUT,M12, Cl 10.9

1шт.

41

36290812

SUPPORT

COUPLING drive

1шт.

45

800-2172

SNAP RING

72 x 2.5 FST, DIN472, FST

4шт.

46

800-1120

SNAP RING,M20, Ext

DIN471 FST

1шт.

53

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

55

800-2142

SNAP RING,M42, Int

x 1.75 DIN 472 FST

2шт.
