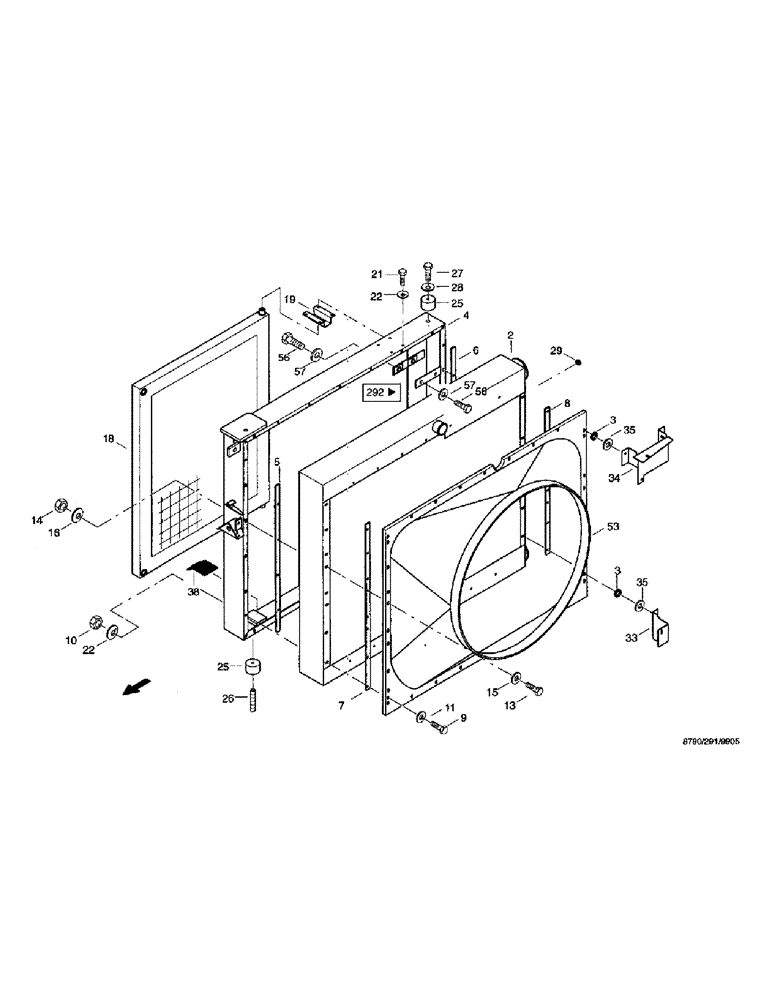

Запчасти Case IH 8790 (051) - RADIATOR SYSTEM, RADIATOR HOUSING, OIL COOLER (10) - ENGINE

2

03909307

COOLER

for water charging-air D40/30

1шт.

3

05811023

GROMMET

SLEEVE rubber, 35

2шт.

4

36416320

FRAME

radiator front part M40/42

1шт.

5

36227332

FASTENER

SHIM, 1

1шт.

6

36227340

FASTENER

SHIM, 2

1шт.

7

36227357

FASTENER

SHIM, 3

1шт.

8

36227365

FASTENER

SHIM, 4

1шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

15шт.

10

825-1408

NUT,M8, Cl 8

15шт.

11

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

8.4 DIN9021 140HV

30шт.

13

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

5шт.

14

86500689

NUT,M10 x 1.5, Cl 10

5шт.

15

06562087

WASHER

10.5 DIN7349 ST

5шт.

16

06577003

SPECIAL WASHER

M10

5шт.

18

03909315

COOLER, OIL

EINFACH

1шт.

19

36249893

PROFILE

1шт.

21

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

22

06577028

SPECIAL WASHER

M8

4шт.

25

03716901

BUMPER

BUFFER, MEGI D75 HART

3шт.

26

06058505

ROD,THREADED

THREADED ROD PIN, M12 x 25 DIN913 45H

2шт.

27

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

28

06577011

PLATE, LOCKING

WASHER, M12

1шт.

29

05811023

GROMMET

SLEEVE rubber, 35

4шт.

33

36290121

SUPPORT

LINE water, port

1шт.

34

36290170

SUPPORT

AIR charging, receiver

1шт.

35

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

38

36249305

RUBBER STRIP

ledge

1шт.

40

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

8.4 DIN9021 140HV

28шт.

53

36225371

COWL

HOOD windbreak

1шт.

56

6148016

BOLT hexagon head, M8 x 16 ISO4017 8.8

8шт.

57

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.
