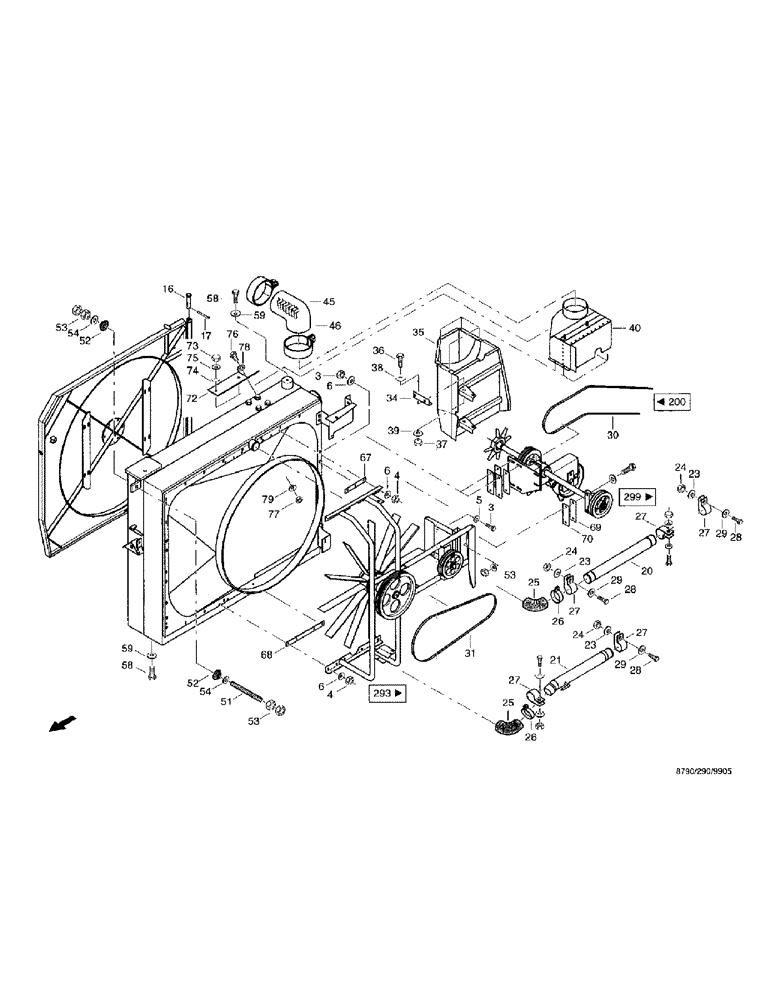

Запчасти Case IH 8790 (048) - RADIATOR SYSTEM, COMPLETION (10) - ENGINE

3

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

4

86500689

NUT,M10 x 1.5, Cl 10

14шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

6

06577003

SPECIAL WASHER

M10

14шт.

16

07640558

LARGE PIN

PIN, LARGE B16H11 x 75 x 70 DIN1444 ST

2шт.

17

06401520

PIN, SPLIT (COTTER)

PIN, COTTER splint, 4 x 25 DIN94 ST

2шт.

20

36267307

PIPE,626.5 mm Length

TUBE, M-K

1шт.

21

36290138

TUBE,630 mm Length

K-M

1шт.

23

06577028

SPECIAL WASHER

M8

5шт.

24

825-1408

NUT,M8, Cl 8

5шт.

25

02059294

UNION

SLEEVE, D70/90GR.

2шт.

26

98032024

CLAMP

CLIP hose, SGT 70-90/13 W1

4шт.

27

02885477

CLAMP

CLIP pipe, RSGU1.70/20-W1 DIN3016

5шт.

28

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

5шт.

29

06562062

WASHER

8.4 DIN7349 ST

5шт.

30

01111678

BELT,2150.00 mm L

Narrow , x, PB2150

2шт.

31

01111717

BELT,2680.00 mm L

Narrow, x, PB2680

2шт.

34

36274314

ANGLE

2шт.

35

36285622

CONVEYOR

channel

1шт.

36

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

8шт.

37

825-1410

NUT,M10, Cl 8

4шт.

38

06562087

WASHER

10.5 DIN7349 ST

8шт.

39

06577003

SPECIAL WASHER

M10

8шт.

40

36287913

COVER

HEAD conduit

1шт.

41

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

Cheese-head, M8 x 16 DIN912 8.8

4шт.

43

06577028

SPECIAL WASHER

M8

4шт.

45

36295938

RADIATOR HOSE,650.00 mm

1шт.

46

06659150

CLAMP

CLIP hose, AS160-180/12 DIN3017 W2-1

2шт.

51

36249965

HOOK

BOLT through

1шт.

52

36249973

RUBBER BLOCK

STOP

2шт.

53

829-1412

NUT,M12, Cl 10.9

6шт.

54

895-25012

WASHER,M12 x 37 x 3

13 DIN9021 140HV

2шт.

58

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

3шт.

59

06577060

WASHER

locking, B12

6шт.

67

36283700

BLOCK

SHIM, 1

8шт.

68

36283717

BLOCK

SHIM, 2

2шт.

69

36283741

SHIM

PLATE spacer

3шт.

70

36283758

SHIM

PLATE spacer

3шт.

72

36294318

PLATE

stiffening

1шт.

73

825-1410

NUT,M10, Cl 8

2шт.

74

06562087

WASHER

10.5 DIN7349 ST

2шт.

75

06577003

SPECIAL WASHER

M10

2шт.

76

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

77

825-1408

NUT,M8, Cl 8

3шт.

78

06562062

WASHER

8.4 DIN7349 ST

3шт.

79

06577028

SPECIAL WASHER

M8

3шт.
