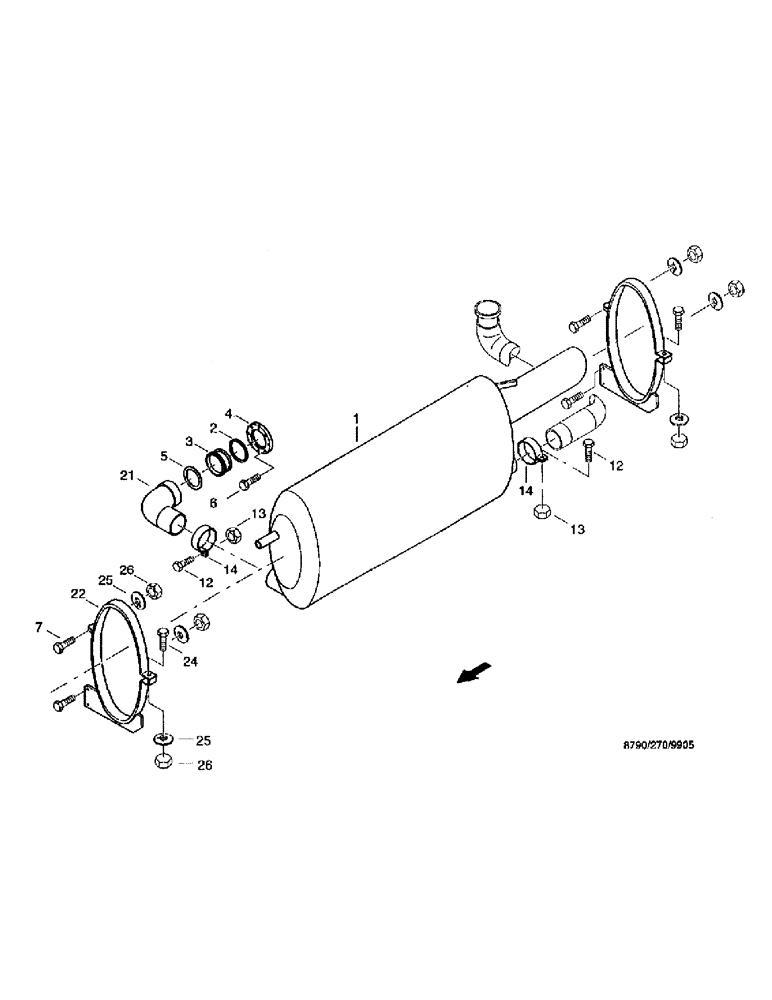

Запчасти Case IH 8790 (047) - ENGINE SYSTEM, EXHAUST SYSTEM (10) - ENGINE

1

07996776

MUFFLER

SILENCER exhaust, M420/57

1шт.

2

02854052

RING ASSY.

lamination, FK5 ASD109/99.8/3.9 1.4571

2шт.

3

36281346

FLANGE

COVER, 1

1шт.

4

02059220

O-RING,92mm ID x 140mm OD x 15mm

clamping, Ed0147-41

2шт.

5

02059237

SEAL

SEAL, ED0148-41

1шт.

6

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

6шт.

7

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

12

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

13

825-1410

NUT,M10, Cl 8

2шт.

14

02854003

PIPE CLAMP

CLIP, 104.5 DIN71555

2шт.

21

36281274

TUBE

gas, exhaust, 3

1шт.

22

36292131

CLAMP

2шт.

24

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

25

06577028

SPECIAL WASHER

M8

8шт.

26

825-1408

NUT,M8, Cl 8

8шт.
