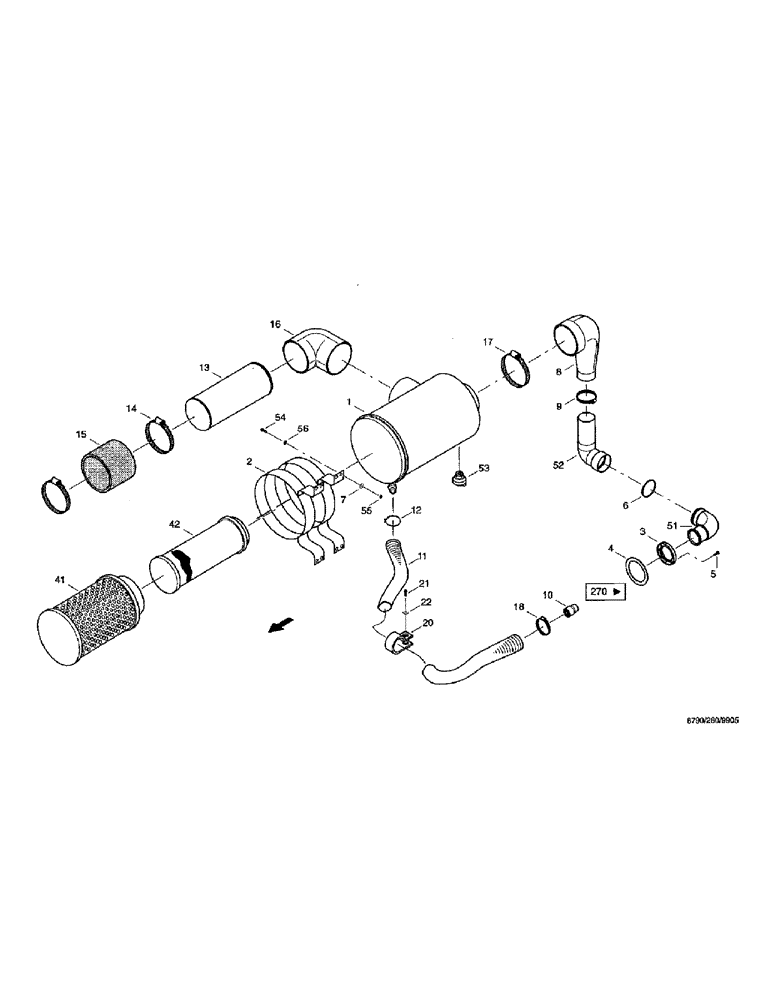

Запчасти Case IH 8790 (045) - ENGINE SYSTEM, AIR FILTER SYSTEM (10) - ENGINE

1

02042454

AIR CLEANER

PICLON, 40M3/MIN

1шт.

2

03100938

RETAINER

SUPPORT

2шт.

3

02059220

O-RING,92mm ID x 140mm OD x 15mm

clamping, Ed0147-41

2шт.

4

02059237

SEAL

SEAL, ED0148-41

1шт.

5

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

6шт.

6

02854052

RING ASSY.

lamination, FK5 ASD109/99.8/3.9 1.4571

2шт.

7

06577003

SPECIAL WASHER

M10

8шт.

8

36284638

END FITTING

Clean-air part, M400

1шт.

9

06659118

CLAMP

CLIP hose, AS130-150 DIN3017 W2-1

1шт.

10

01170413

ADAPTER

screw neck

1шт.

11

01403527

HOSE

spiral, 40 x 950 mm VACUFLEX K1H-PU

1шт.

12

98046010

CLAMP

hose, TYP AF38/43

1шт.

13

02848255

PIPE SET

air

1шт.

14

06659134

CLAMP

CLIP hose, AS210-230 DIN3017 W2-1

2шт.

15

02851162

HOSE,210.00 mm ID x 200.00 mm

Gummi bis 120 Grad C

1шт.

16

01461214

PIPE

raw-air part D400

1шт.

17

06659134

CLAMP

CLIP hose, AS210-230 DIN3017 W2-1

2шт.

18

98039952

CLAMP

CLIP hose, SGT 32-50/13 W1

1шт.

20

98041065

FIXING BRACKET

CLIP attaching, RSGU1.45/20-W1

1шт.

21

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

ISO4017

1шт.

22

06577028

SPECIAL WASHER

M8

1шт.

41

02042550

FILTER, ELEMENT

ELEMENT, FILTER C33920/3

1шт.

42

02042702

FILTER, ELEMENT

ELEMENT, FILTER CARTRIDGE safety, CF2100

1шт.

51

36281258

TUBE

gas, exhaust, 1

1шт.

52

36281266

TUBE

gas, exhaust, 2

1шт.

53

98047387

DECAL

maintenance switch, 50MBAR

1шт.

54

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

8шт.

55

825-1410

NUT,M10, Cl 8

8шт.

56

06562087

WASHER

10.5 DIN7349 ST

8шт.
