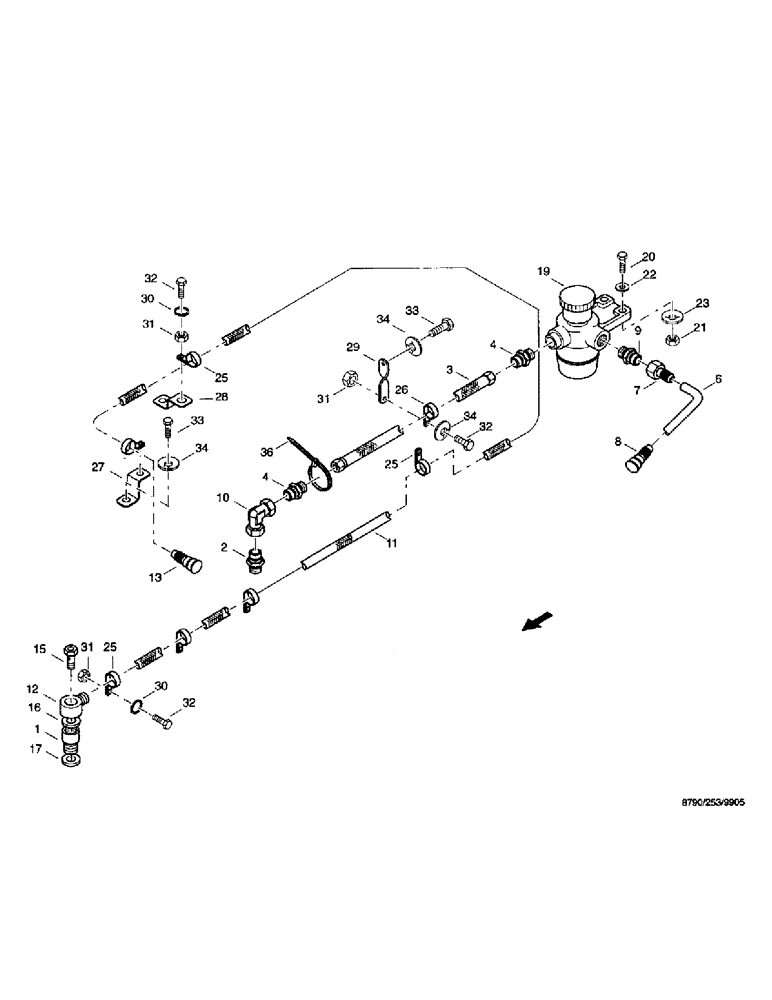

Запчасти Case IH 8790 (043) - ENGINE SYSTEM, COMPLETION (10) - ENGINE

1

36221817

NECK FILLER

reducing port for tank

1шт.

2

03433024

ADAPTER

CONNECTOR male, GE15-LM-ED/OMD

1шт.

3

02016477

HOSE

LINE fuel, TR15/12LT POLYAMID 11

1шт.

4

02016485

FITTING

CONNECTION mandrel, D22 x 1.5-12/KUGELB.M. ÜBERW

2шт.

6

98039941

LINER

HOSE, TR12.5/10 WSWLT SCHWARZ

1шт.

7

02016516

FITTING

CONNECTION mandrel, D16 x 1.5-10/KUGELB.M. ÜBERW

1шт.

8

02016524

ADAPTER

mandrel

1шт.

9

03434958

ADAPTER

CONNECTOR male, GE10-LM-ED/OMD

1шт.

10

03433547

ELBOW

ELBOW threaded, joint, EW15-L/OMD

1шт.

11

98039941

LINER

HOSE, TR12.5/10 WSWLT SCHWARZ

2шт.

12

98039943

HOSE ASSY.

6069

1шт.

13

02016524

ADAPTER

Mandrel

1шт.

15

06106811

BANJO BOLT,M8 x 1.25 x 33.50mm

hollow, 10 (M14 x 1.5) DIN7643

1шт.

16

04101407

GASKET

SEAL, A14 x 18 DIN7603 CU

2шт.

17

04101608

GASKET

SEAL, A18 x 22 DIN7603 CU

1шт.

19

02016598

PUMP

Manual, feed

1шт.

20

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

21

825-1408

NUT,M8, Cl 8

2шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

23

06577028

SPECIAL WASHER

M8

2шт.

25

06623461

CLAMP

CLIP hose, RSGU1.12/12-W1

6шт.

26

06623478

CLAMP

CLIP hose, RSGU1.15/12-W1

4шт.

27

36293784

SUPPORT

PORT hose

1шт.

28

36293792

SUPPORT

PORT hose

1шт.

29

36293807

SUPPORT

PORT hose

1шт.

30

06455662

WASHER, LOCK

spring, A5 DIN128 FST

10шт.

31

825-1405

NUT,M5, Cl 8

10шт.

32

614-5016

BOLT,Hex, M5 x 0.8 x 16mm, Cl 8.8, Full Thd

ISO 4017

10шт.

33

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

ISO4017

3шт.

34

06577028

SPECIAL WASHER

M8

3шт.

36

07068200

CABLE

band, sw 188 x 4.8 TSL-190-S

4шт.
