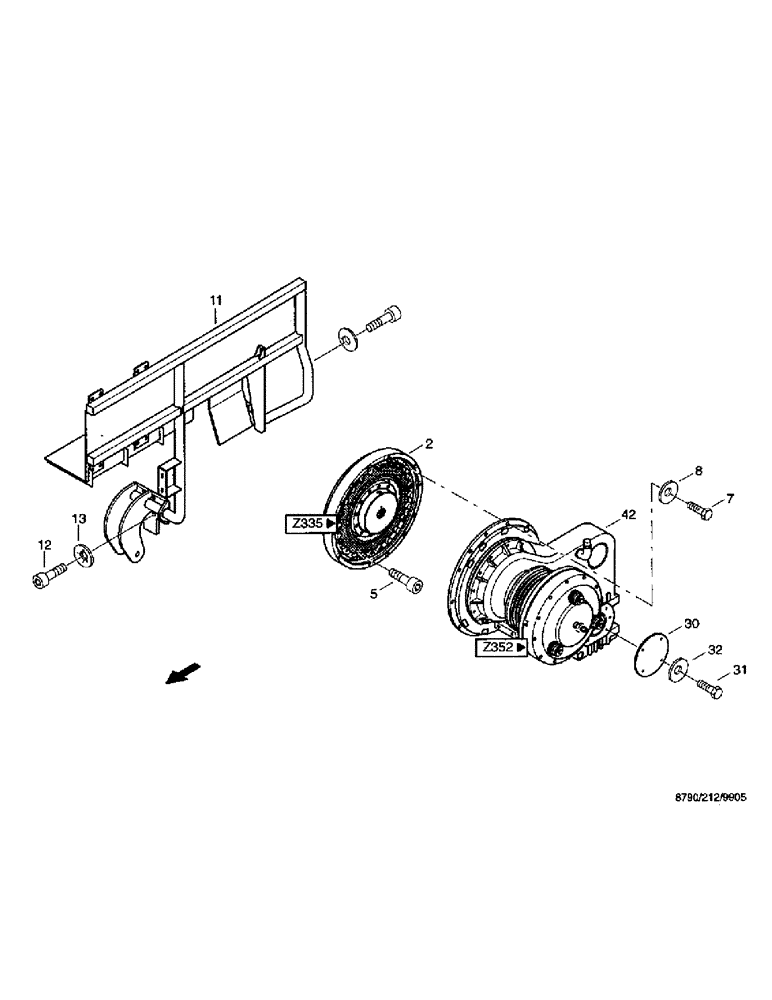

Запчасти Case IH 8790 (037) - ENGINE SYSTEM, FLYWHEEL ASSEMBLY (10) - ENGINE

1

02821011

TRANSMISSION

GEAR distributor

1шт.

2

02855568

CLUTCH

CENTAMAX-4000-SCA3- SÄ14

1шт.

5

06285564

SCREW

cheese-head, M12 x 1.5 x 55 DIN912 10.9

8шт.

7

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

12шт.

8

06577028

SPECIAL WASHER

M8

12шт.

11

36291323

FRAME

holding

1шт.

12

864-16045

HEX SOC SCREW,M16 x 45mm, Cl 8.8

Cheese-head, DIN 912

8шт.

13

06577093

LOCK WASHER

M16

8шт.

30

36293591

COVER

1шт.

31

614-14030

BOLT,Hex, M14 x 2 x 30mm, Cl 8.8, Full Thd

ISO4017 8.8

4шт.

32

06577108

SPECIAL WASHER

M14

4шт.
