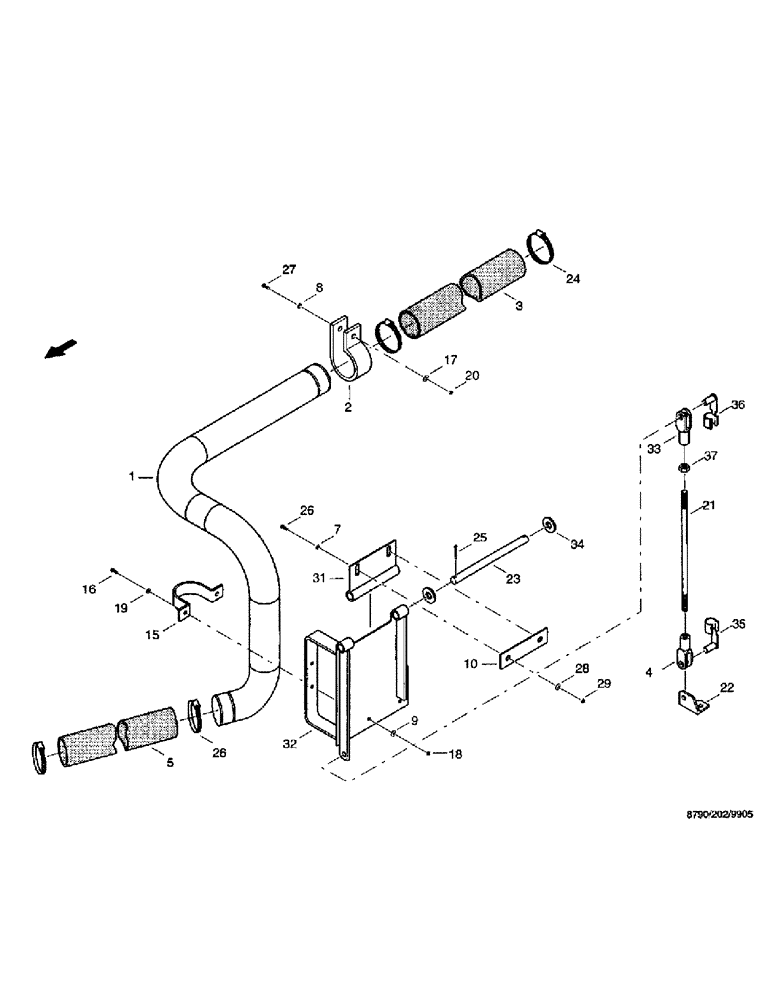

Запчасти Case IH 8790 (033) - ENGINE SYSTEM, TUBE (10) - ENGINE

1

36284398

TUBE,566, 381 mm Length

M-K

1шт.

2

02885477

CLAMP

CLIP pipe, RSGU1.70/20-W1 DIN3016

1шт.

3

02059253

HOSE

rubber, 70 x 1000 mm

1шт.

4

06174412

FORK

YOKE, G12 x 48-LH DIN71752

1шт.

5

02059278

HOSE

rubber, 65 x 1000 mm

1шт.

6

06623420

CLAMP

Hose, B2-76 x 20-W1-1 DIN3017

2шт.

7

06562087

WASHER

10.5 DIN7349 ST

2шт.

8

06562062

WASHER

8.4 DIN7349 ST

1шт.

9

06577028

SPECIAL WASHER

M8

1шт.

10

36292814

PLATE

SHIM

2шт.

15

36291188

CLAMP

PIPE water

1шт.

16

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

17

06577028

SPECIAL WASHER

M8

2шт.

18

825-1408

NUT,M8, Cl 8

2шт.

19

06562062

WASHER

8.4 DIN7349 ST

2шт.

20

825-1408

NUT,M8, Cl 8

1шт.

21

36292533

STEM

BOLT through

1шт.

22

36292541

ANGLE

COUPLING

1шт.

23

36292646

LARGE PIN

PIN, LARGE

1шт.

24

06623437

CLAMP

Hose, B2-82 x 25-W1-1 DIN3017

2шт.

25

06401520

PIN, SPLIT (COTTER)

PIN, COTTER splint, 4 x 25 DIN94 ST

2шт.

26

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

27

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

28

06577052

SPECIAL WASHER

locking, B10

2шт.

29

825-1410

NUT,M10, Cl 8

2шт.

31

36292566

HINGE

1шт.

32

36292590

DIPPER

ROCKER

1шт.

33

97058011

CRADLE

YOKE, G12 x 24 DIN71752 9S20K

1шт.

34

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

2шт.

35

98024743

LARGE PIN

PIN, LARGE BOLT, ES12 x 48 ES-NORM-01

1шт.

36

98028673

LARGE PIN

PIN, LARGE BOLT, ES12 x 24 ES-NORM-01

1шт.

37

829-1412

NUT,M12, Cl 10.9

1шт.
