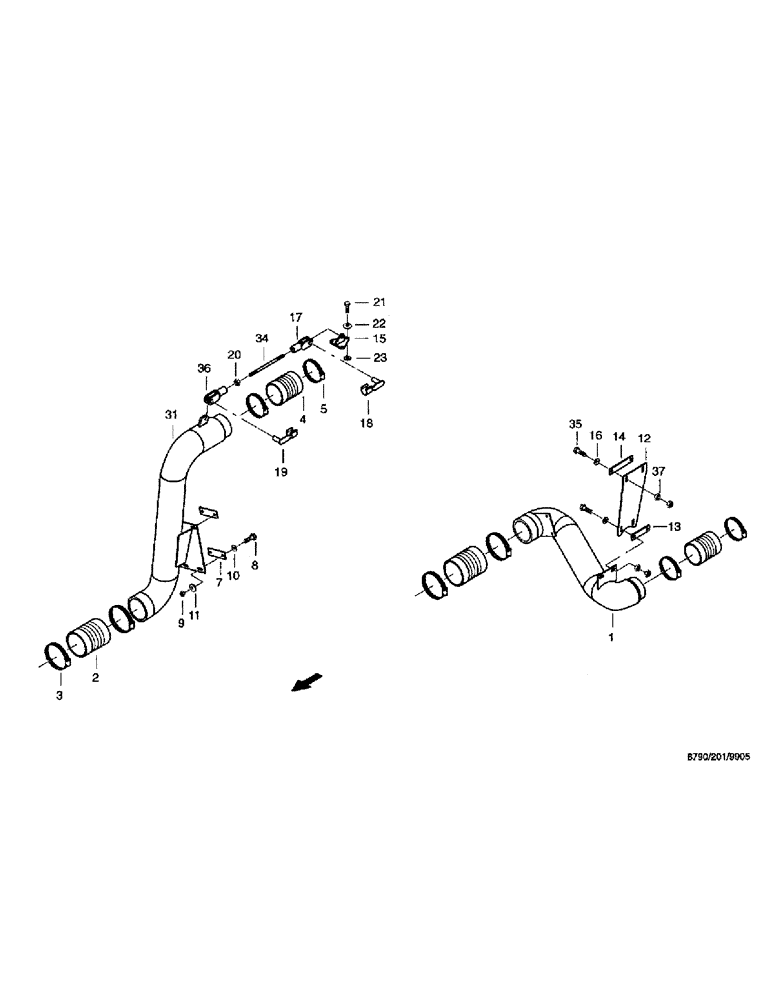

Запчасти Case IH 8790 (031) - ENGINE SYSTEM, CHARGE AIR (10) - ENGINE

1

36284107

LINE

charge air, Om 502M-K

1шт.

2

02058992

BELLOWS

D127 EZ

2шт.

3

06623453

CLAMP

Hose, B2-134 x 25-W1-1 DIN3017

4шт.

4

02059261

HOSE

BELLOW, 115...

2шт.

5

06623445

CLAMP

Hose, B2-124 x 25-W1-1 DIN3017

4шт.

7

36293831

PLATE

SHIM

6шт.

8

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

ISO 4017

4шт.

9

825-1410

NUT,M10, Cl 8

4шт.

10

06562087

WASHER

10.5 DIN7349 ST

4шт.

11

06577003

SPECIAL WASHER

M10

4шт.

12

36292365

PLATE

COUPLING

1шт.

13

36292373

PAD, RUBBER

1шт.

14

36292381

PAD, RUBBER

1шт.

15

36292404

HOLDER

COUPLING

1шт.

16

06562038

WASHER

13 DIN7349 ST

4шт.

17

06174412

FORK

YOKE, G12 x 48-LH DIN71752

1шт.

18

98024743

LARGE PIN

PIN, LARGE BOLT, ES12 x 48 ES-NORM-01

1шт.

19

98028673

LARGE PIN

PIN, LARGE BOLT, ES12 x 24 ES-NORM-01

1шт.

20

829-1412

NUT,M12, Cl 10.9

1шт.

21

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

22

06577028

SPECIAL WASHER

M8

3шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

31

36284123

LINE

Charge air Om 502K-M

1шт.

34

36292398

STEM

BOLT through

1шт.

35

614-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

4шт.

36

97058011

CRADLE

YOKE, G12 x 24 DIN71752 9S20K

1шт.

37

829-1412

NUT,M12, Cl 10.9

8шт.
