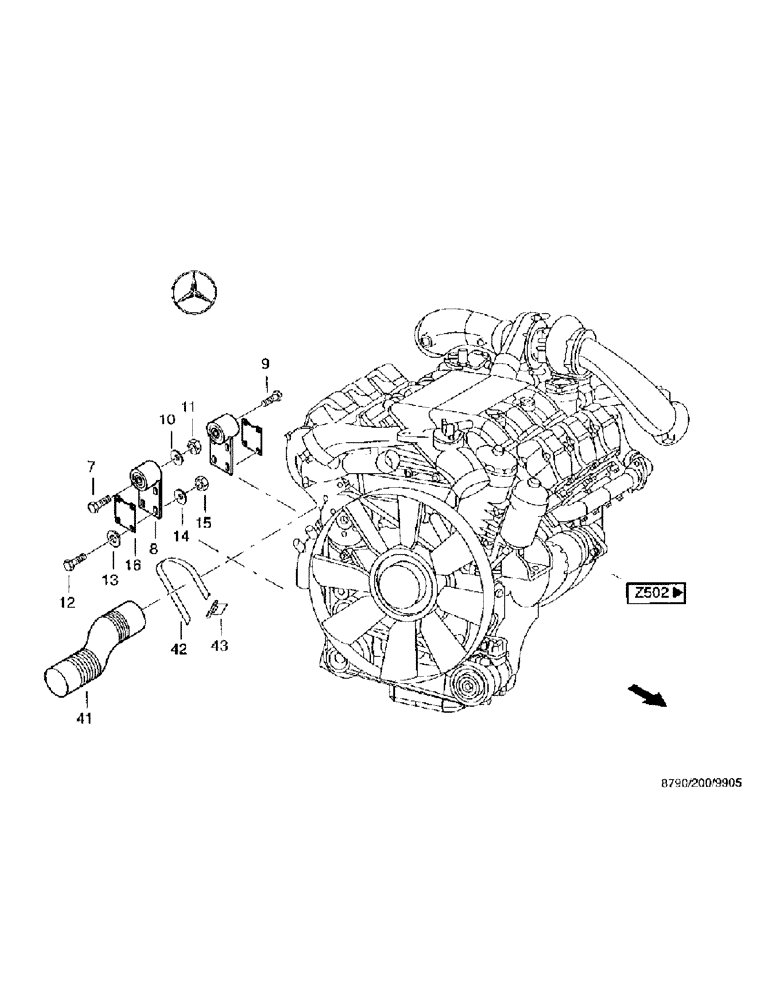

Запчасти Case IH 8790 (030) - ENGINE SYSTEM, ENGINE CONSTRUCTION (10) - ENGINE

1

02057171

ENGINE ASSEMBLY

ENGINE ASSY diesel, 400KW 2000MIN-1 OM502LA 4

1шт.

7

814-20140

BOLT,Hex, M20 x 2.5 x 140mm, Cl 8.8

ISO 4014

1шт.

8

02058976

RETAINER

SUPPORT

2шт.

9

827-20120

BOLT,Hex, M20 x 2.5 x 120mm, Cl 10.9

1шт.

10

06577116

PLATE, LOCKING

WASHER, M20

2шт.

11

825-1420

NUT,M20, Cl 8

Hex, ISO4032

2шт.

12

614-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8, Full Thd

8шт.

13

06562183

WASHER

17 DIN7349 ST

16шт.

14

06577093

LOCK WASHER

M16

8шт.

15

825-1416

NUT,M16, Cl 8

8шт.

16

36260413

FASTENER

SHIM

12шт.

41

02059044

PLASTIC-RUBBER TUBE

air, 121 x 500

4шт.

42

06610256

STRAP

TAPE tension, 9 mm L=30M

6шт.

43

06610385

LOCK

NB-A9

8шт.
