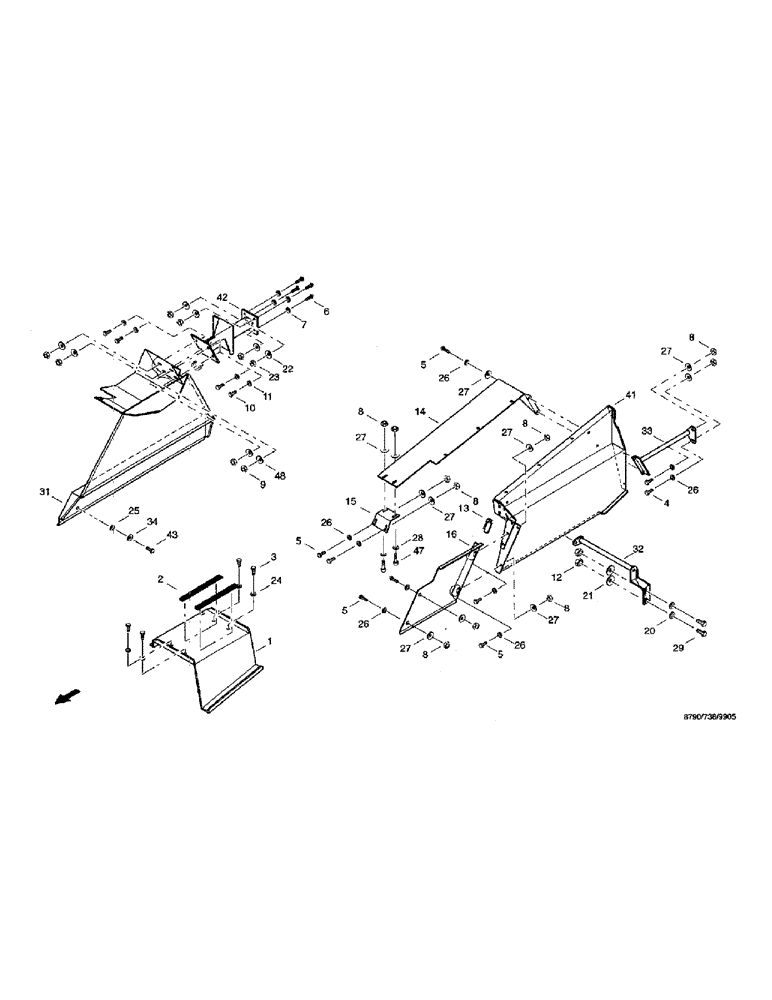

Запчасти Case IH 8790 (174) - PLANKING, GUARDS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

36266033

PROTECTOR

guard

1шт.

2

01444367

LINING

anti chute, 25 x 325

2шт.

3

36262585

HOLDER

bracket h

1шт.

4

06562062

WASHER

8.4 DIN7349 ST

4шт.

5

06562038

WASHER

13 DIN7349 ST

1шт.

6

06562062

WASHER

8.4 DIN7349 ST

15шт.

7

06562038

WASHER

13 DIN7349 ST

4шт.

8

06577011

PLATE, LOCKING

WASHER, M12

4шт.

9

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

2шт.

10

06562087

WASHER

10.5 DIN7349 ST

2шт.

11

06562038

WASHER

13 DIN7349 ST

4шт.

12

06577011

PLATE, LOCKING

WASHER, M12

4шт.

13

01402903

SEAL, RUBBER

RUBBER SEAL profile

1шт.

14

36263135

SHEET

packing plate

1шт.

15

36267428

ANGLE

holding

1шт.

16

36262511

PROTECTIVE COVER

conduit

1шт.

17

07753092

SCREW

flat-round-head, M8 x 20 DIN603 8.8

2шт.

18

06502654

WASHER

V9 DIN440 100HV

2шт.

19

06577044

SPECIAL WASHER

locking, B8

2шт.

20

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

21

06577003

SPECIAL WASHER

Locking

2шт.

22

36262833

HOLDER

bracket v

1шт.

23

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

24

06577011

PLATE, LOCKING

WASHER, M12

1шт.

25

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

9шт.

26

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

27

06577028

SPECIAL WASHER

M8

9шт.

28

825-1408

NUT,M8, Cl 8

8шт.

29

829-1412

NUT,M12, Cl 10.9

4шт.

31

36416601

PROTECTOR

guard

1шт.

32

36293173

RETAINER

SUPPORT

1шт.

33

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

34

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

41

36286744

PROTECTION PLATE

guard Motorabtrieb

1шт.

42

825-1410

NUT,M10, Cl 8

2шт.

43

829-1412

NUT,M12, Cl 10.9

4шт.

47

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

48

825-1408

NUT,M8, Cl 8

1шт.
