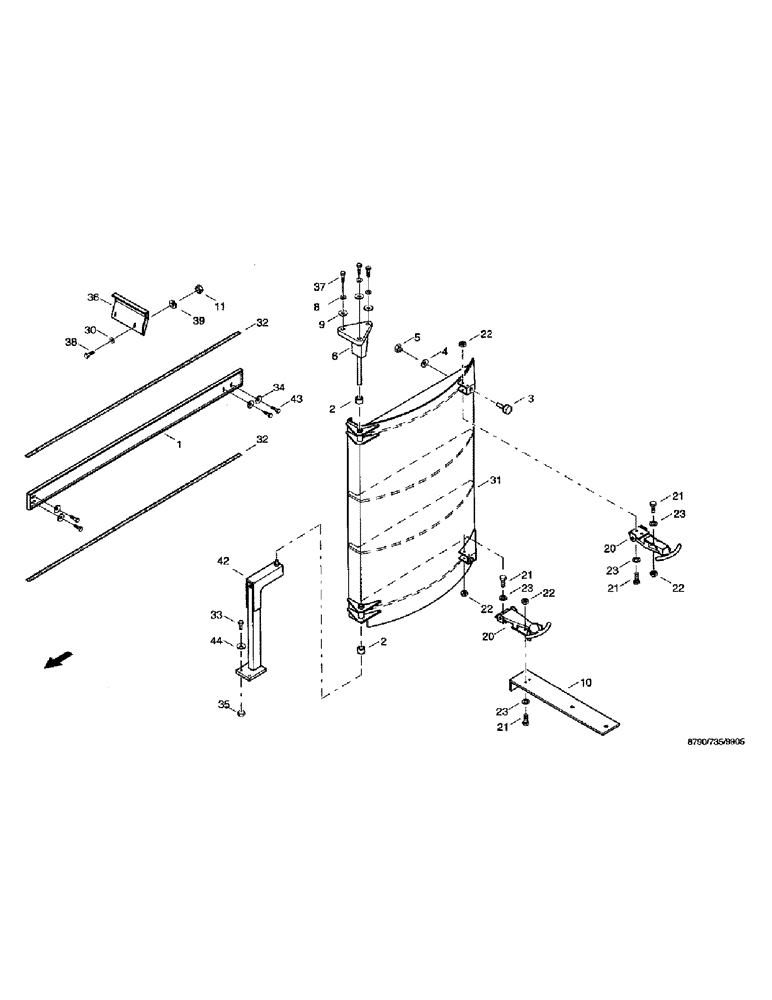

Запчасти Case IH 8790 (171) - PLANKING, WIND FLAP, SEAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

36260501

PROTECTION PLATE

1шт.

2

01328201

BUSHING

SLEEVE, GFM-2023-21

2шт.

3

01149280

RUBBER BLOCK

STOP, 18 x 7.5 55SHORE

2шт.

4

06577003

SPECIAL WASHER

M10

2шт.

5

825-1406

NUT,M6, Cl 8

2шт.

6

36257065

GUIDE

o

1шт.

7

01402903

SEAL, RUBBER

RUBBER SEAL profile

1шт.

8

06562087

WASHER

10.5 DIN7349 ST

3шт.

9

06577003

SPECIAL WASHER

M10

3шт.

10

36266074

STOP

1шт.

11

829-1412

NUT,M12, Cl 10.9

1шт.

20

02852091

FASTENER

tightening strap lock

2шт.

21

614-5016

BOLT,Hex, M5 x 0.8 x 16mm, Cl 8.8, Full Thd

ISO 4017

8шт.

22

825-1405

NUT,M5, Cl 8

8шт.

23

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

8шт.

30

895-25012

WASHER,M12 x 37 x 3

13 DIN9021 140HV

1шт.

31

36286656

FLAP

door

1шт.

32

01402903

SEAL, RUBBER

RUBBER SEAL profile

3шт.

33

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

34

06577028

SPECIAL WASHER

M8

4шт.

35

825-1410

NUT,M10, Cl 8

2шт.

36

36260856

PROTECTION PLATE

1шт.

37

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

3шт.

38

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

39

06577011

PLATE, LOCKING

WASHER, M12

1шт.

42

36276927

BEARING

u

1шт.

43

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

44

06577036

SPECIAL WASHER

M6

2шт.
