(170) - PLANKING, PACKAGE WARNING CONSOLES, REAR

Запчасти Case IH 8790 (170) - PLANKING, PACKAGE WARNING CONSOLES, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

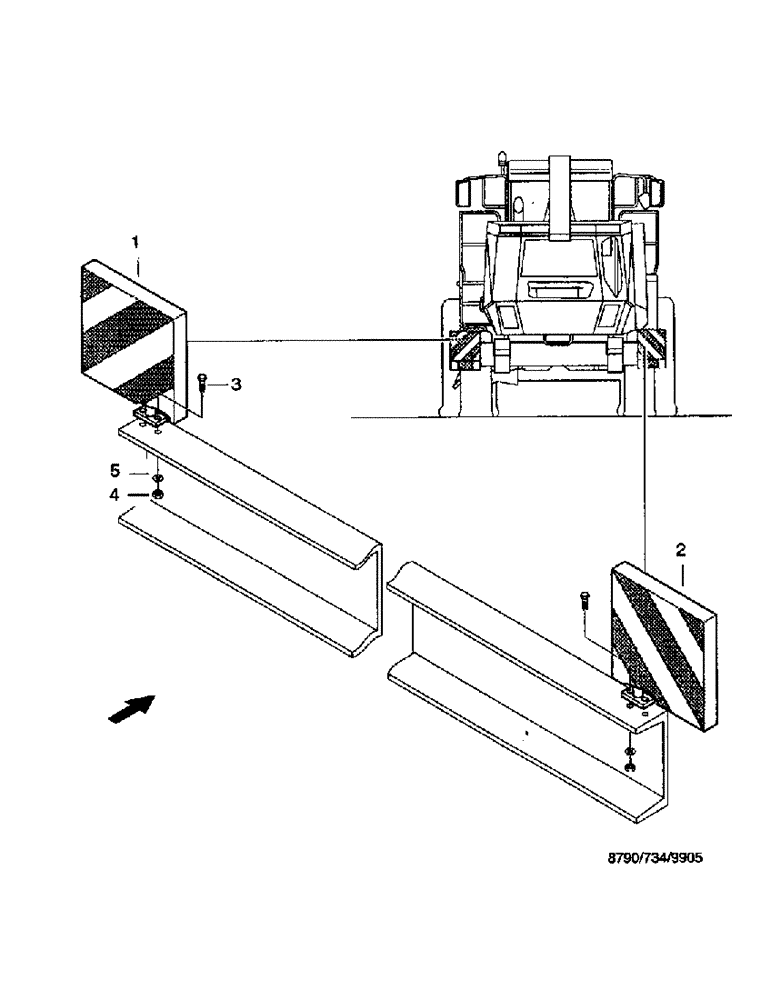

Схема запчастей Case IH 8790 - (170) - PLANKING, PACKAGE WARNING CONSOLES, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
3
2
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

36277358

DECAL

warning console l

1шт.

2

36277366

DECAL

warning console r

1шт.

3

613-12045

BOLT hexagon head, M12 x 45 ISO4017 8.8

BOLT

4шт.

4

829-1412

NUT,M12, Cl 10.9

4шт.

5

DF004630

DISC

WASHER, 14 DIN434

4шт.
