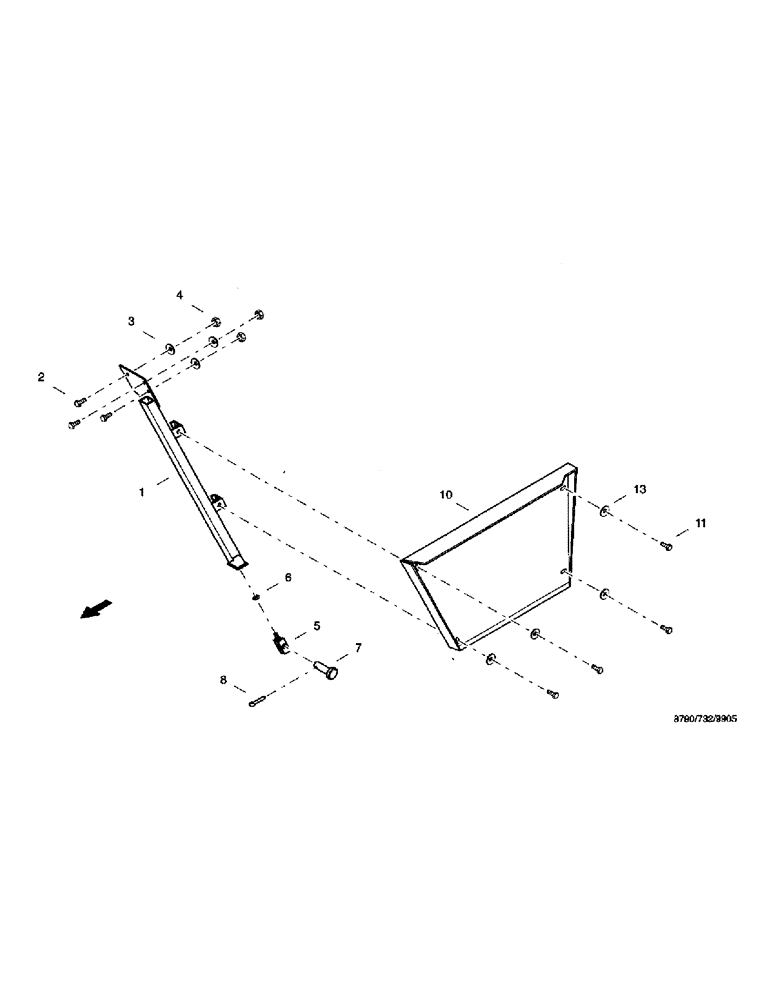

Запчасти Case IH 8790 (169) - PLANKING, SUPPORT RIGHT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

36265145

SUPPORT

r

1шт.

2

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

3шт.

3

06577011

PLATE, LOCKING

locking, M12

3шт.

4

829-1412

NUT,M12, Cl 10.9

3шт.

5

36218227

ADAPTER

screwing piece

1шт.

6

825-13424

NUT,M24 x 2, Cl 8

hex, M24 x 2 ISO8673 8

1шт.

7

07640582

LARGE PIN

PIN, LARGE B30H11 x 65 x 57 DIN1444 ST

1шт.

8

06402755

PIN, SPLIT (COTTER)

PIN, COTTER splint, 8 x 45 DIN94 ST

1шт.

10

36286631

SHEET

side guard r

1шт.

11

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

4шт.

13

06577060

WASHER

locking, B12

4шт.
