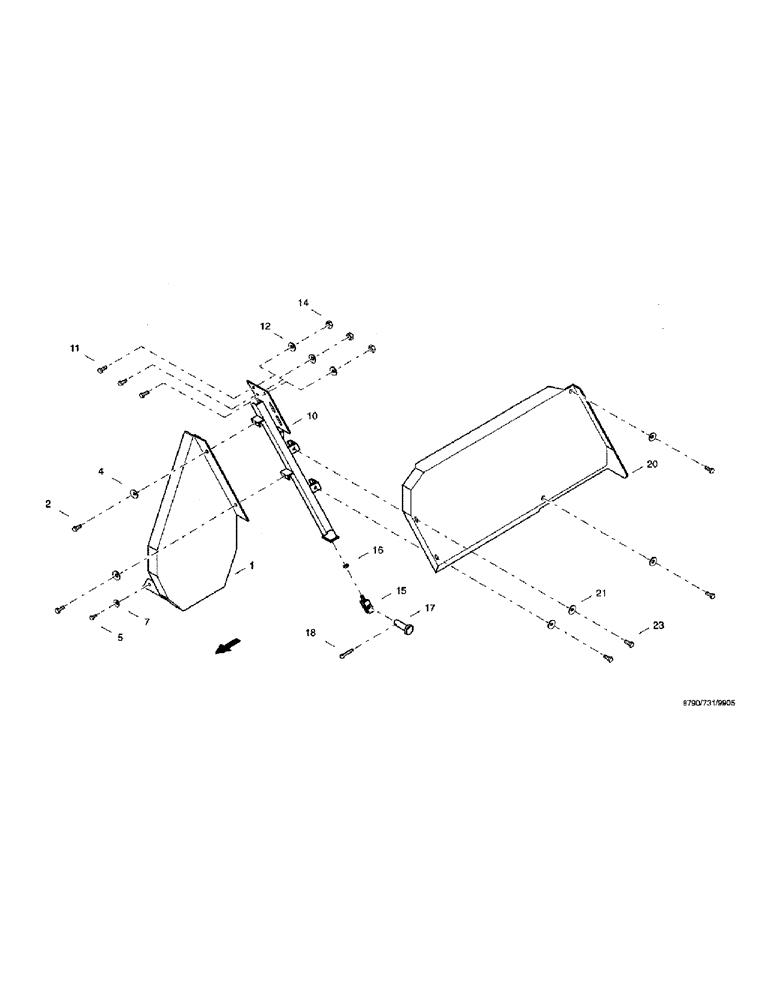

Запчасти Case IH 8790 (168) - PLANKING, SUPPORT, LEFT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

36286703

SUPPORT

guard l

1шт.

2

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

2шт.

4

06577060

WASHER

B12

2шт.

5

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

7

06577052

SPECIAL WASHER

WASHER, B10

1шт.

10

36265098

SUPPORT

l

1шт.

11

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

3шт.

12

06577011

PLATE, LOCKING

washer M12

3шт.

14

829-1412

NUT,M12, Cl 10.9

3шт.

15

36218227

ADAPTER

screwing piece

1шт.

16

825-13424

NUT,M24 x 2, Cl 8

hex, M24 x 2 ISO8673 8

1шт.

17

07640582

LARGE PIN

PIN, LARGE B30H11 x 65 x 57 DIN1444 ST

1шт.

18

06402755

PIN, SPLIT (COTTER)

PIN, COTTER splint, 8 x 45 DIN94 ST

1шт.

20

36286711

SHEET

side guard l

1шт.

21

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

4шт.

23

06577060

WASHER

locking, B12

4шт.
