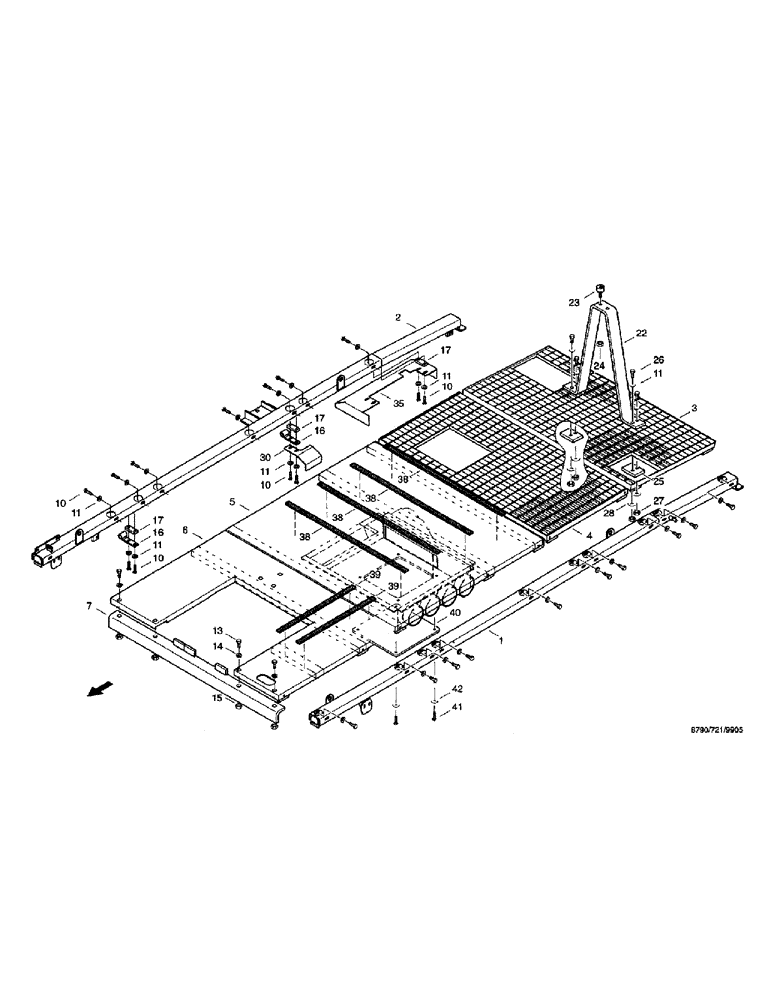

Запчасти Case IH 8790 (166) - TRIM, TYRE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

36263713

CARRIER

frame, side, bar l

1шт.

2

36293438

CARRIER

frame, side, bar r

1шт.

3

36416521

SCREEN

grate h

1шт.

4

36293446

GRILLE ASSY

grate v

1шт.

5

36293454

PROTECTIVE COVER

h

1шт.

6

36286865

PROTECTIVE COVER

v

1шт.

7

36260108

ANGLE BAR

1шт.

10

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

36шт.

11

06562038

WASHER

13 DIN7349 ST

40шт.

13

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

14

06562087

WASHER

10.5 DIN7349 ST

4шт.

15

825-1410

NUT,M10, Cl 8

4шт.

16

36228807

BEARING

flap

6шт.

17

36228815

SHORT SHAFT

plate with thread

8шт.

22

36280931

SUPPORT

BRACKET

1шт.

23

01139832

BUMPER

STOP rubber 50 x 28 FORM-NR.25333D NAT.

2шт.

24

825-1410

NUT,M10, Cl 8

2шт.

25

36237488

PLATE

2шт.

26

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

4шт.

27

100038

NUT,M12 x 1.75, Cl 8

4шт.

28

06577011

PLATE, LOCKING

WASHER, M12

4шт.

30

36268236

ANGLE

holding

1шт.

35

36268211

RETAINER

SUPPORT

1шт.

38

01444375

LINING

anti chute, 25 x 1000

4шт.

39

01444334

LINING

anti chute, 25 x 650

2шт.

40

36295858

COVER

CAP

1шт.

41

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

ISO4017

4шт.

42

06577028

SPECIAL WASHER

M8

4шт.
