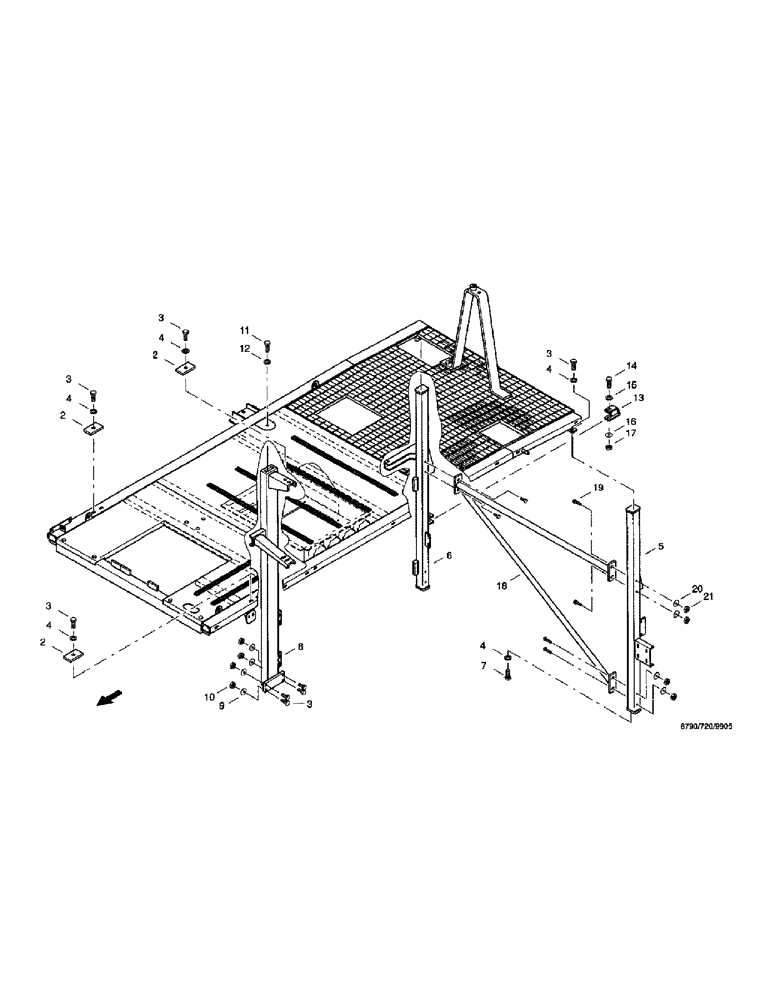

Запчасти Case IH 8790 (165) - TRIM, TRIM FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

2

36228815

SHORT SHAFT

plate with thread

3шт.

3

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

12шт.

4

06562038

WASHER

13 DIN7349 ST

10шт.

5

36284332

SUPPORT

tail, l

1шт.

6

36287480

SUPPORT

tail, r

1шт.

7

614-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

2шт.

8

36294061

SUPPORT

1шт.

9

06577011

PLATE, LOCKING

WASHER, M12

4шт.

10

829-1412

NUT,M12, Cl 10.9

4шт.

11

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

12

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

13

36263553

SHIN

BRACKET restricting

1шт.

14

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

15

06562062

WASHER

8.4 DIN7349 ST

2шт.

16

06577028

SPECIAL WASHER

M8

2шт.

17

825-1408

NUT,M8, Cl 8

2шт.

18

36293286

SUPPORT

traverse

1шт.

19

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

6шт.

20

06577052

SPECIAL WASHER

locking, B10

12шт.

21

825-1410

NUT,M10, Cl 8

6шт.
