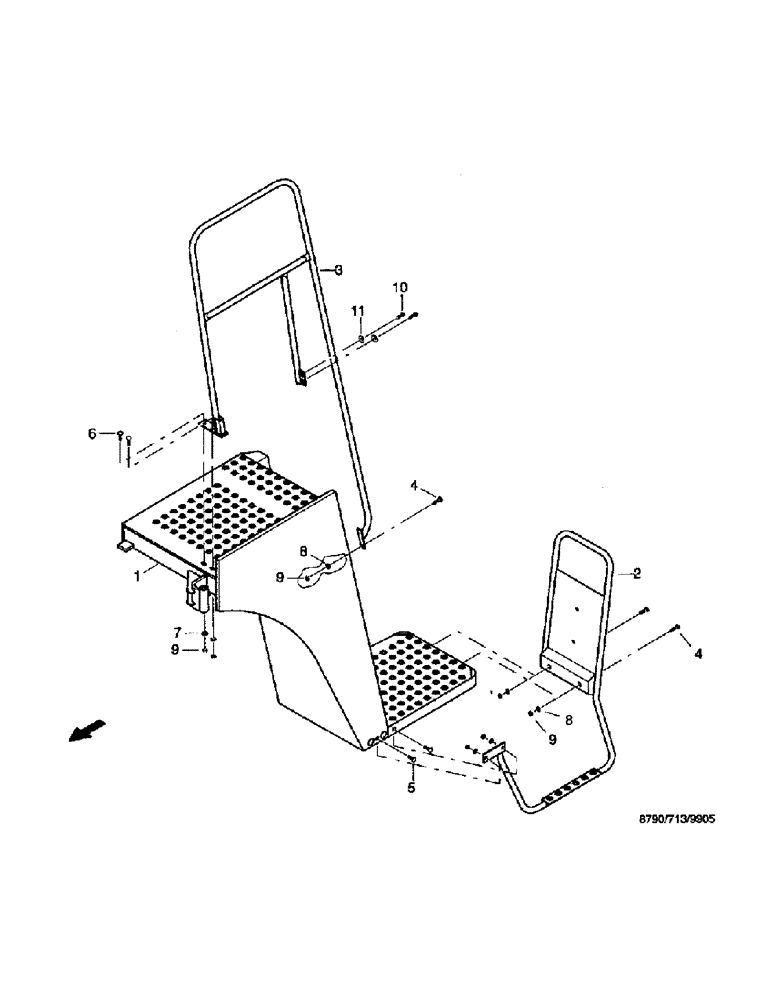

Запчасти Case IH 8790 (164) - TRIM, STEPS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

36245711

STIRRUP

STEPS

1шт.

2

36286945

SHIELD

ENTRANCE

1шт.

3

36286920

GRAB RAIL

1шт.

4

07753092

SCREW

flat-round-head, M8 x 20 DIN603 8.8

3шт.

5

07753211

SCREW

flat-round-head, M8 x 25 DIN603 8.8

2шт.

6

07756142

SCREW

flat-round-head, M8 x 120 DIN603 8.8

2шт.

7

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

8.4 DIN9021 140HV

2шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

9

06116155

NUT,M8, Cl 8

7шт.

10

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

11

06577028

SPECIAL WASHER

M8

2шт.
