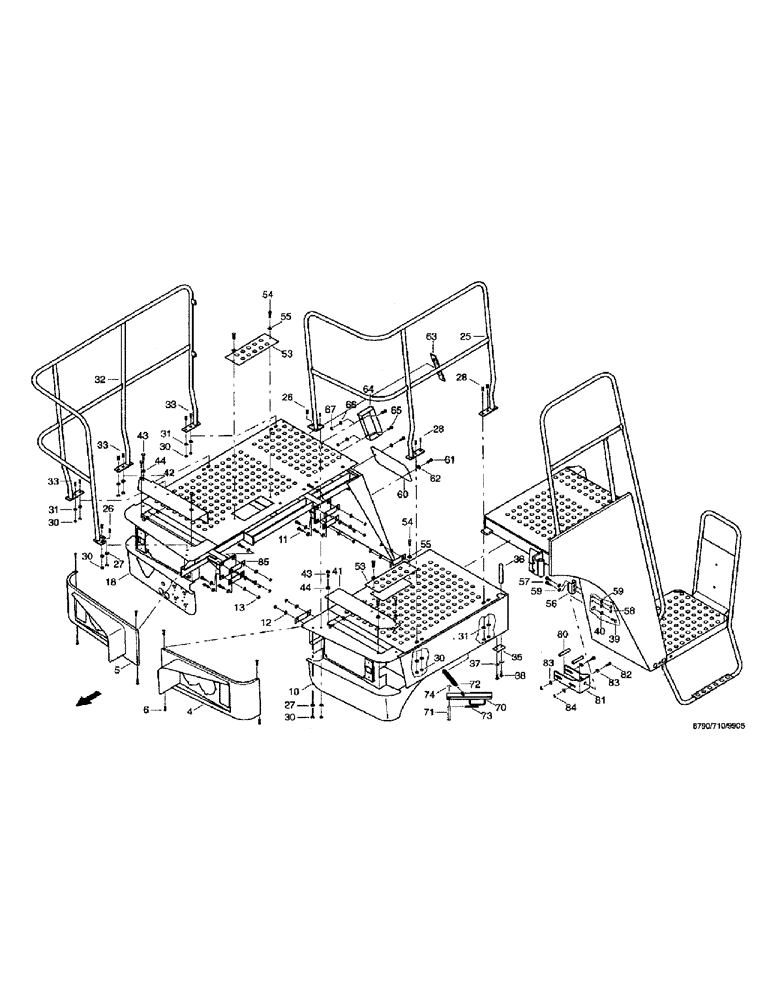

Запчасти Case IH 8790 (161) - TRIM, PLATFORM RAIL (90) - PLATFORM, CAB, BODYWORK AND DECALS

4

05810498

ORIFICE

COVER flexible, l KUNST

1шт.

5

05810504

ORIFICE

COVER flexible, r KUNST

1шт.

6

760-34313

SELF-TAP SCREW,Pan Hd, M4.2 x 13

8шт.

10

36243621

PLATFORM

l

1шт.

11

614-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8, Full Thd

ISO 4017

16шт.

12

06562038

WASHER

13 DIN7349 ST

32шт.

13

100038

NUT,M12 x 1.75, Cl 8

16шт.

18

36244341

PLATFORM

r

1шт.

25

36224258

GRAB RAIL

l

1шт.

26

07753092

SCREW

flat-round-head, M8 x 20 DIN603 8.8

4шт.

27

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

28

07753236

SCREW

flat-round-head, M8 x 100 DIN603 8.8

4шт.

30

06116155

NUT,M8, Cl 8

14шт.

31

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

8.4 DIN9021 140HV

10шт.

32

36286961

GRAB RAIL

r

1шт.

33

711-8070

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 70mm, Cl 8.8

flat-round-head, M8 x 70 DIN603 8.8

6шт.

35

36244751

PLATE

1шт.

36

36244768

LARGE PIN

PIN, LARGE

1шт.

37

06577028

SPECIAL WASHER

M8

2шт.

38

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

39

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

1шт.

40

06502871

WASHER

R13.5 DIN440 100HV

1шт.

41

36244776

PANEL

tyre l

1шт.

42

36244784

PANEL

tyre r

1шт.

43

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

8шт.

44

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

53

36256023

COVER

CAP

2шт.

54

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

55

06562062

WASHER

8.4 DIN7349 ST

4шт.

56

36257844

PROFILE

1шт.

57

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

58

06116155

NUT,M8, Cl 8

2шт.

59

06562062

WASHER

8.4 DIN7349 ST

4шт.

60

36261904

COVER

CAP

1шт.

61

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

62

06562062

WASHER

8.4 DIN7349 ST

2шт.

64

36264683

HANDLE

1шт.

65

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

66

06562062

WASHER

8.4 DIN7349 ST

2шт.

67

06116155

NUT,M8, Cl 8

2шт.

70

36275083

STOP LOCK

1шт.

71

07635310

LARGE PIN

PIN, LARGE B12H11 x 50 x 44.5 DIN1444 ST

1шт.

72

06736365

TENSION SPRING

B2 x 22 x 16AA2

1шт.

73

733-3220

COTTER PIN,M3.2 x 20

1шт.

74

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

80

36280111

BUSHING

SPACER

2шт.

81

36286986

BAR

u-profile

1шт.

82

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

2шт.

83

06562087

WASHER

10.5 DIN7349 ST

4шт.

84

86500689

NUT,M10 x 1.5, Cl 10

2шт.

85

36285696

PLATE

SHIM

4шт.
