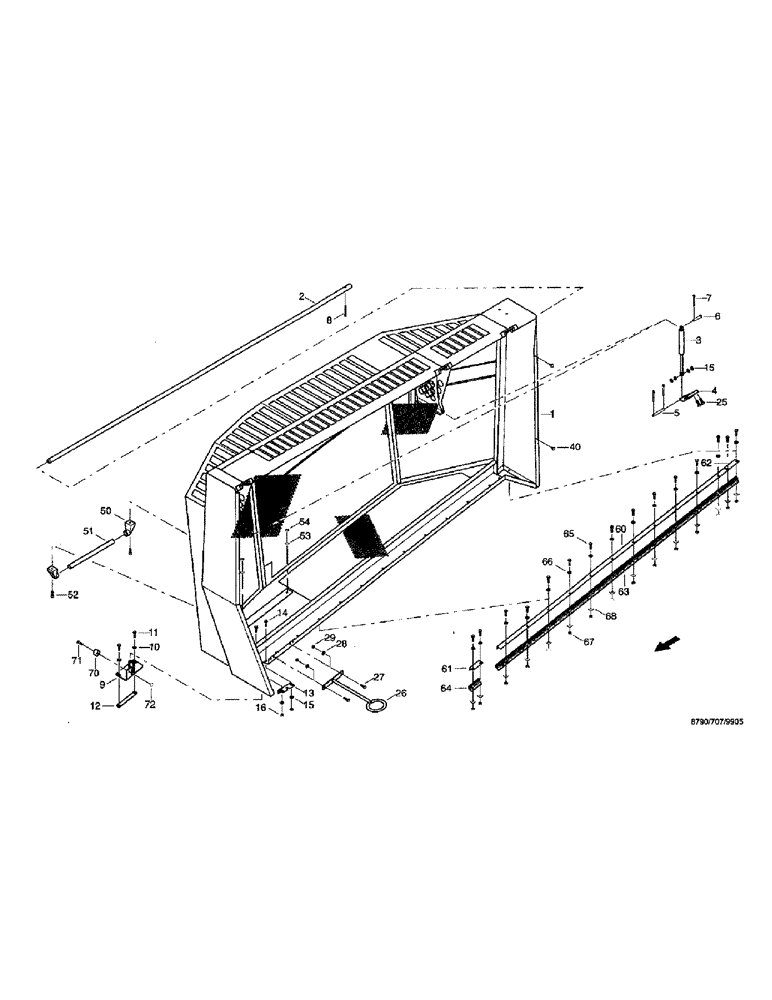

Запчасти Case IH 8790 (158) - TRIM, SIDE FLAP RIGHT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

36287150

FLAP

side, r

1шт.

2

36255135

PIPE,2512 mm Length

tube

1шт.

3

04012881

CYLINDER, GAS

strut F1 1100...1150N

2шт.

4

36287167

BEARING

2шт.

5

07640574

PIN

PIN, LARGE B8H11 x 55 x 48 DIN1443 ST

2шт.

6

07632092

PIN

PIN, LARGE B8H11 x 20 x 16.5 DIN1444 ST

2шт.

7

06400954

PIN, SPLIT (COTTER)

PIN, COTTER splint, 2 x 16 DIN94 ST

6шт.

8

733-4040

COTTER PIN,M4 x 40

Split, DIN94 ST

1шт.

9

36209894

STOP

1шт.

10

06562062

WASHER

8.4 DIN7349 ST

2шт.

11

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

12

36210203

BLOCK

SHIM

1шт.

13

02034470

LOCK

LOCK tailgate, KV500-01

1шт.

14

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

15

06562062

WASHER

8.4 DIN7349 ST

12шт.

16

06116155

NUT,M8, Cl 8

2шт.

25

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

26

36254946

HANDLE

i

1шт.

27

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

28

06562062

WASHER

8.4 DIN7349 ST

4шт.

29

06116155

NUT,M8, Cl 8

2шт.

40

01162462

RUBBER BLOCK

STOP, F1023

2шт.

50

03716942

PLATE

end piece

2шт.

51

03716950

TUBE,30 mm Diameter, 366 mm Length

1шт.

52

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

Cheese-head

2шт.

53

06562062

WASHER

8.4 DIN7349 ST

2шт.

54

06116155

NUT,M8, Cl 8

2шт.

60

36263014

ANGLE

1

1шт.

61

36263022

ANGLE

2

1шт.

62

36263127

ANGLE

3

1шт.

63

01402911

PROFILE

SEAL

2шт.

64

01402911

PROFILE

SEAL

1шт.

65

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

15шт.

66

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

15шт.

67

825-1408

NUT,M8, Cl 8

15шт.

68

06577028

SPECIAL WASHER

M8

15шт.

70

01139752

RUBBER BLOCK

STOP, FUß25 FORM1821

1шт.

71

06017097

SCREW

lens-head, M6 x 25 DIN85 4.8

1шт.

72

825-1406

NUT,M6, Cl 8

1шт.
