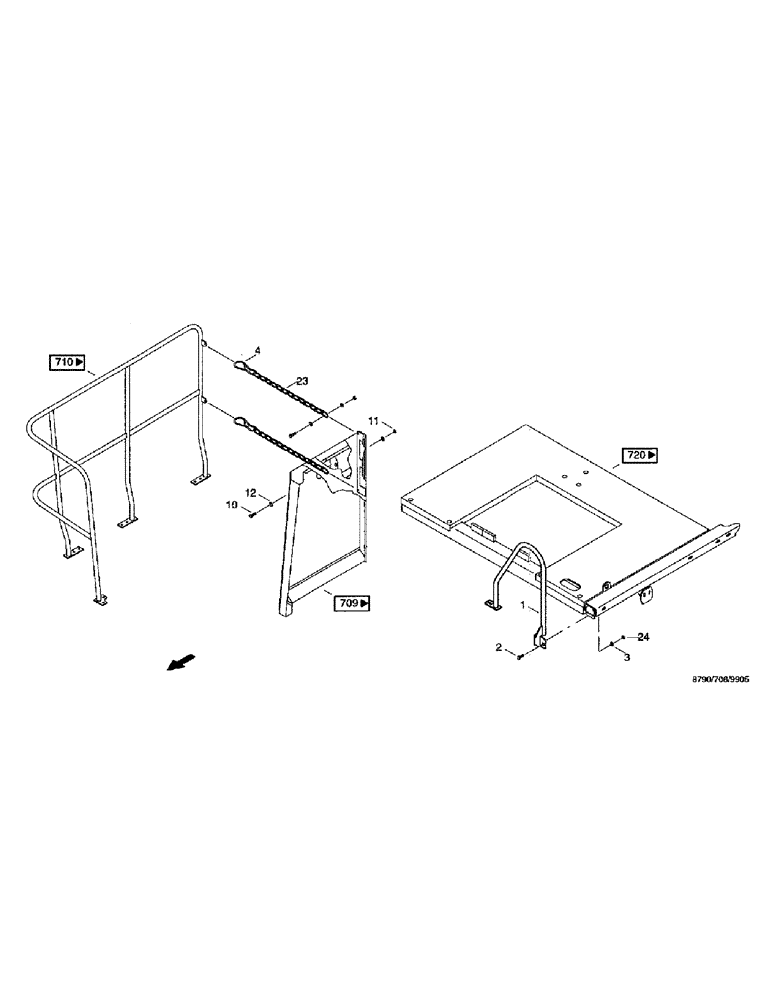

Запчасти Case IH 8790 (157) - TRIM, CHAIN GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

36288393

HANDLE

1шт.

2

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

3

06562038

WASHER

13 DIN7349 ST

2шт.

4

03286117

HOOK

spring, B60 6 x 50 DIN5299 V2A

2шт.

10

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

11

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

Hex

2шт.

12

06562214

WASHER

6.4 DIN7349 ST

4шт.

23

06847837

CHAIN (CE)

3-6 x 18.5-29GLIEDER DIN766 S

2шт.

24

829-1412

NUT,M12, Cl 10.9

2шт.
