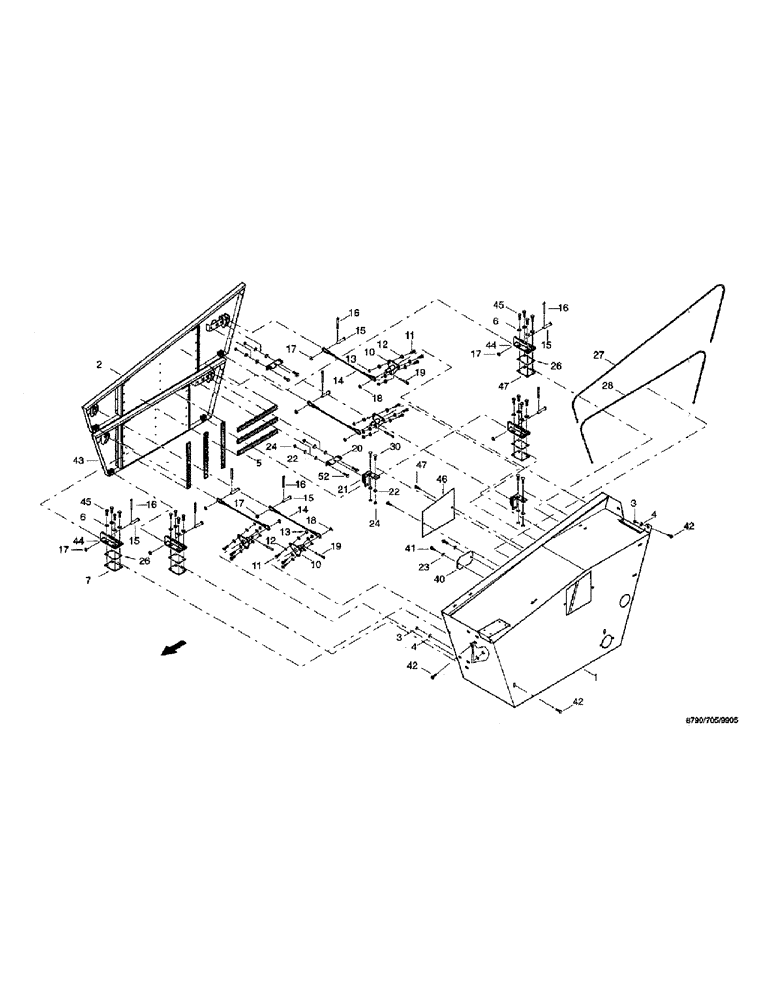

Запчасти Case IH 8790 (155) - TRIM, GUARD BOTTOM, RIGHT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

36287021

PROTECTOR

guard r, u

1шт.

2

36256097

FLAP

door o

1шт.

3

100038

NUT,M12 x 1.75, Cl 8

4шт.

4

06562038

WASHER

13 DIN7349 ST

8шт.

5

01444367

LINING

anti chute, 25 x 325

6шт.

6

06562062

WASHER

8.4 DIN7349 ST

16шт.

7

36213938

BLOCK

SHIM

4шт.

10

36256273

CABLE CLIP

rope fixing

4шт.

11

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

12шт.

12

06562062

WASHER

8.4 DIN7349 ST

24шт.

13

06116155

NUT,M8, Cl 8

12шт.

14

04030867

ROPE

wire, 5 mm

4шт.

15

07640244

LARGE PIN

PIN, LARGE B8H11 x 35 x 31.5 DIN1444 ST

8шт.

16

06400954

PIN, SPLIT (COTTER)

PIN, COTTER splint, 2 x 16 DIN94 ST

8шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

18

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

19

06401520

PIN, SPLIT (COTTER)

PIN, COTTER splint, 4 x 25 DIN94 ST

4шт.

20

02034470

LOCK

LOCK tailgate, KV500-01

2шт.

21

36256304

STOP

2шт.

22

06562062

WASHER

8.4 DIN7349 ST

2шт.

23

06562062

WASHER

8.4 DIN7349 ST

16шт.

24

06116155

NUT,M8, Cl 8

8шт.

26

36262214

FASTENER

SHIM

4шт.

27

01402903

SEAL, RUBBER

RUBBER SEAL profile

1шт.

28

01402903

SEAL, RUBBER

RUBBER SEAL profile

1шт.

30

07753211

SCREW

flat-round-head, M8 x 25 DIN603 8.8

4шт.

40

36284010

COVER

CAP

1шт.

41

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

42

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

43

36256160

FLAP

door u

1шт.

44

36212711

HINGE

4шт.

45

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

16шт.

46

36256546

COVER

CAP

1шт.

47

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

52

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.
