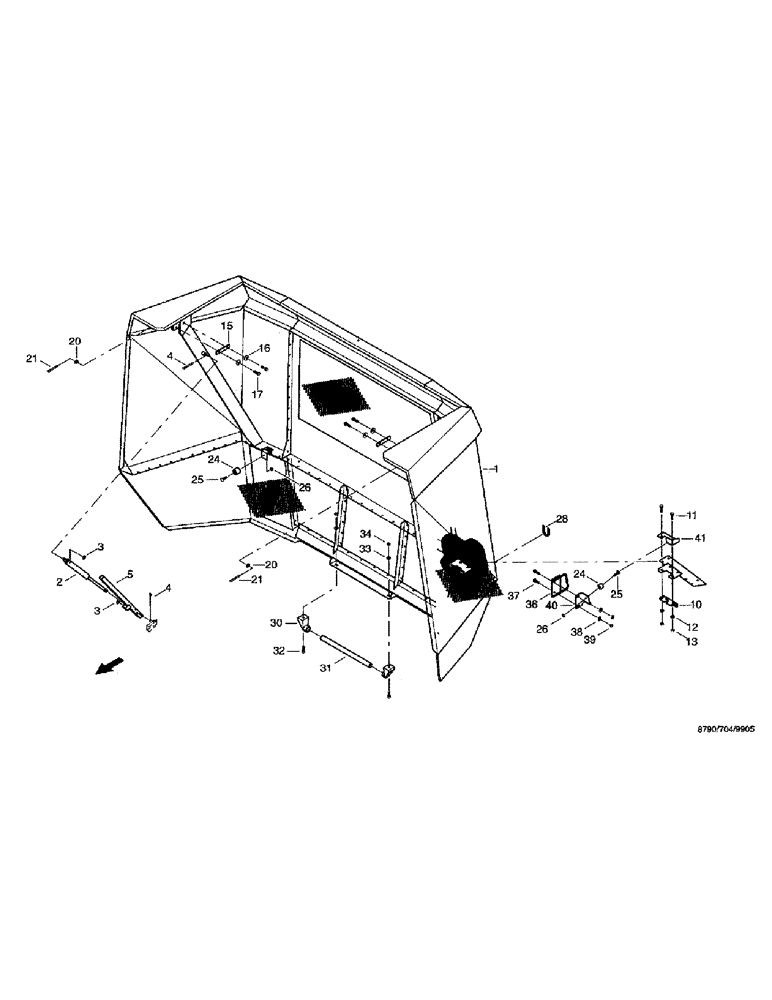

Запчасти Case IH 8790 (153) - TRIM, TAILGATE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

36292726

FLAP

tailgate

1шт.

2

04012881

CYLINDER, GAS

strut F1 1100...1150N

2шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

4

06400954

PIN, SPLIT (COTTER)

PIN, COTTER splint, 2 x 16 DIN94 ST

4шт.

5

36284701

STOP LOCK

r

1шт.

10

02034470

LOCK

LOCK tailgate, KV500-01

1шт.

11

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

12

06562062

WASHER

8.4 DIN7349 ST

4шт.

13

06116155

NUT,M8, Cl 8

2шт.

15

36257668

CATCH

LOCK

2шт.

16

06577028

SPECIAL WASHER

M8

4шт.

17

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

20

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

2шт.

21

06402240

PIN, SPLIT (COTTER)

PIN, COTTER splint, 4 x 22 DIN94 ST

2шт.

24

01139752

RUBBER BLOCK

STOP, FUß25 FORM1821

2шт.

25

06017097

SCREW

lens-head, M6 x 25 DIN85 4.8

2шт.

26

825-1406

NUT,M6, Cl 8

2шт.

30

03716942

PLATE

end piece

2шт.

31

03716950

TUBE,30 mm Diameter, 366 mm Length

1шт.

32

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

Cheese-head

2шт.

33

06562062

WASHER

8.4 DIN7349 ST

2шт.

34

06116155

NUT,M8, Cl 8

2шт.

36

36279142

CINTRE

BOW BRACKET restricting

1шт.

37

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

38

06562062

WASHER

8.4 DIN7349 ST

2шт.

39

06116155

NUT,M8, Cl 8

2шт.

40

36279552

HOLDER

buffer

1шт.

41

36279616

PLATE ASSY.

STOP

1шт.
