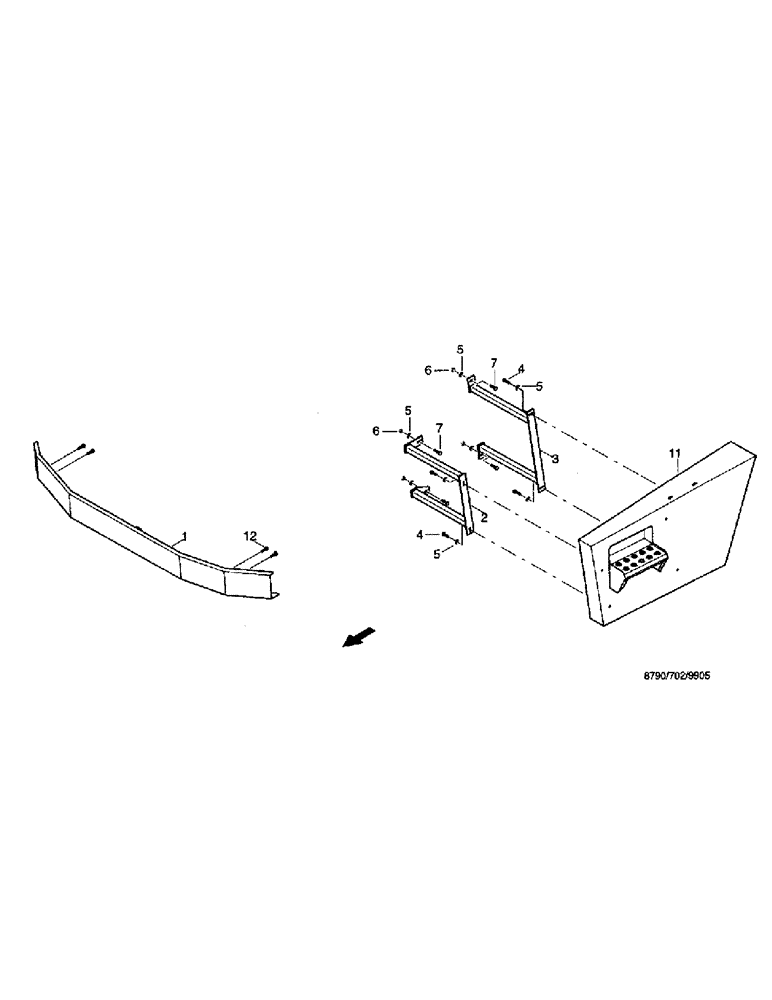

Запчасти Case IH 8790 (152) - TRIM, GUARD BOTTOM, LEFT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

36259821

PROTECTIVE COVER

PANEL

1шт.

2

36273764

SHIN

BRACKET, v

1шт.

3

36250870

CINTRE

BOW BRACKET, h

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

12шт.

5

06562062

WASHER

8.4 DIN7349 ST

12шт.

6

06116155

NUT,M8, Cl 8

4шт.

7

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

11

36287070

PROTECTOR

guard l, u

1шт.

12

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.
