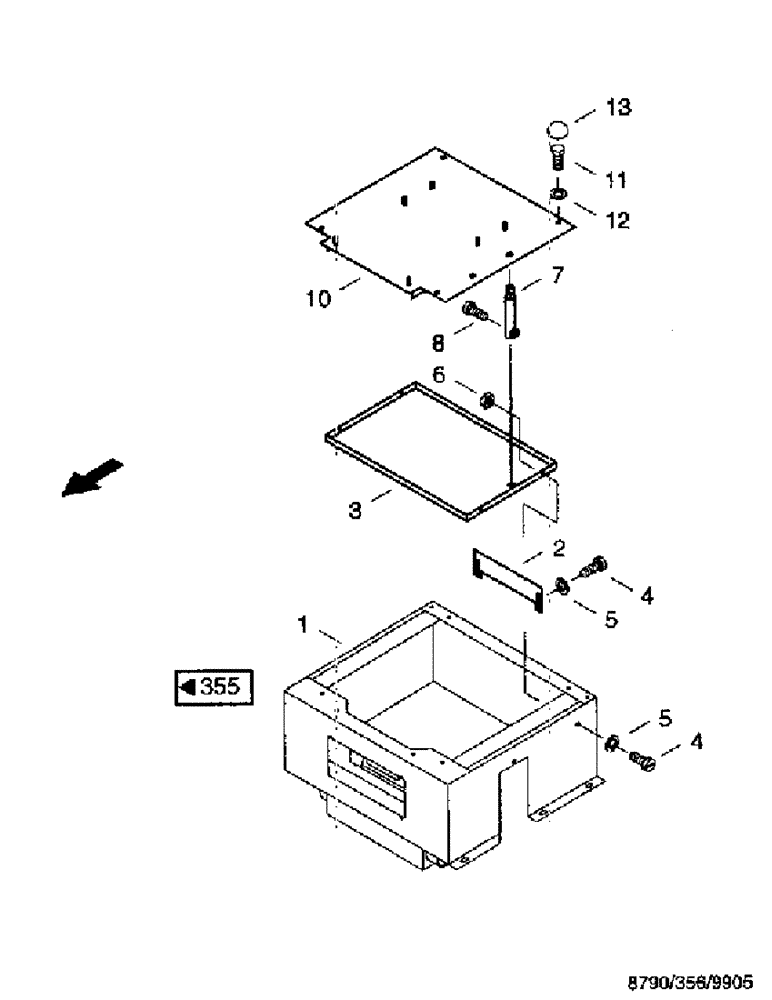

Запчасти Case IH 8790 (090) - CAB, HOUSING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

32505044

CASE ASSY.

box

1шт.

2

32505108

SHEET

PLATE adjusting

1шт.

3

32505093

PROTECTIVE COVER

1шт.

4

06005630

SCREW

cheese-head, M6 x 20 DIN84 4.8

6шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

6

825-1406

NUT,M6, Cl 8

4шт.

7

32506777

EXTENSION

1шт.

8

614-5010

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

1шт.

10

32500466

COVER

CAP

1шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

12

03020206

WASHER

A8.4 DIN125 140HV

4шт.

13

01409508

PLUG

CAP hex, M8

4шт.
