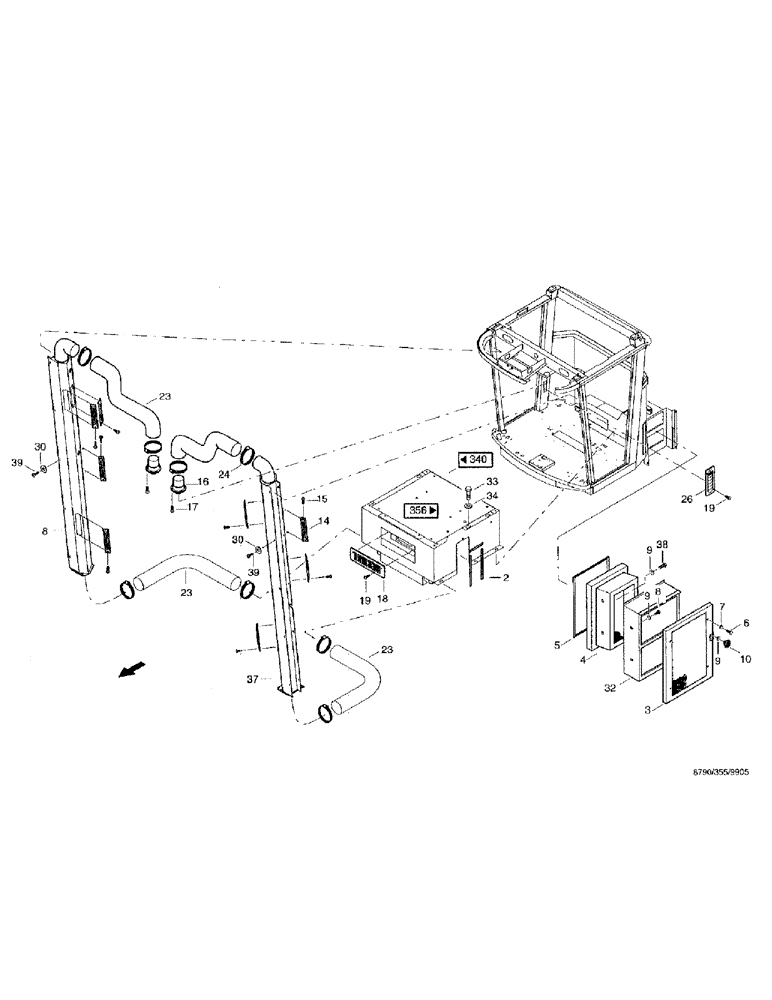

Запчасти Case IH 8790 (089) - CAB, VENTILATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

2

01170751

SEAL

rubber, 30 x 20

1шт.

3

32506576

COVER

CAP

1шт.

4

03918500

FILTER

C 30154

2шт.

5

01458991

GASKET

SEAL profile, 3 x 10

1шт.

6

840-3620

SCREW,Pan, M6 x 20mm, Cl 4.8

Lens-head, DIN 85 4.8

4шт.

7

06510228

WASHER

6.4 DIN9021

4шт.

8

32506744

CHANNEL

SPOUT, r

1шт.

9

03020271

WASHER

8.4 DIN9021 140HV

3шт.

10

01321855

HANDLE

star, 50 M8

1шт.

14

02898738

JET

nozzle roll

8шт.

15

06388072

SCREW

self-tapping, ST3.5 x 22-C-H DIN7983 A3R (SCH

16шт.

16

02898207

JET

nozzle circular, RD70

2шт.

17

06388072

SCREW

self-tapping, ST3.5 x 22-C-H DIN7983 A3R (SCH

8шт.

18

07090063

KIT

set of nozzles

1шт.

19

06388072

SCREW

self-tapping, ST3.5 x 22-C-H DIN7983 A3R (SCH

4шт.

23

01403430

HOSE

spiral, 70

2шт.

24

06659054

CLAMP

CLIP hose, AL60-80 DIN3017 W2-1

8шт.

26

01346621

JET

long nozzle

1шт.

30

895-25005

WASHER,M5 x 15 x 1.6

DIN9021 140HV

24шт.

32

32501145

RETAINER

SUPPORT

1шт.

33

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

34

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

8.4 DIN9021 140HV

5шт.

37

32500771

CHANNEL

SPOUT, l

1шт.

38

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

39

760-34319

SELF-TAP SCREW,Pan Hd, M4.2 x 19

F-H DIN7981

24шт.
