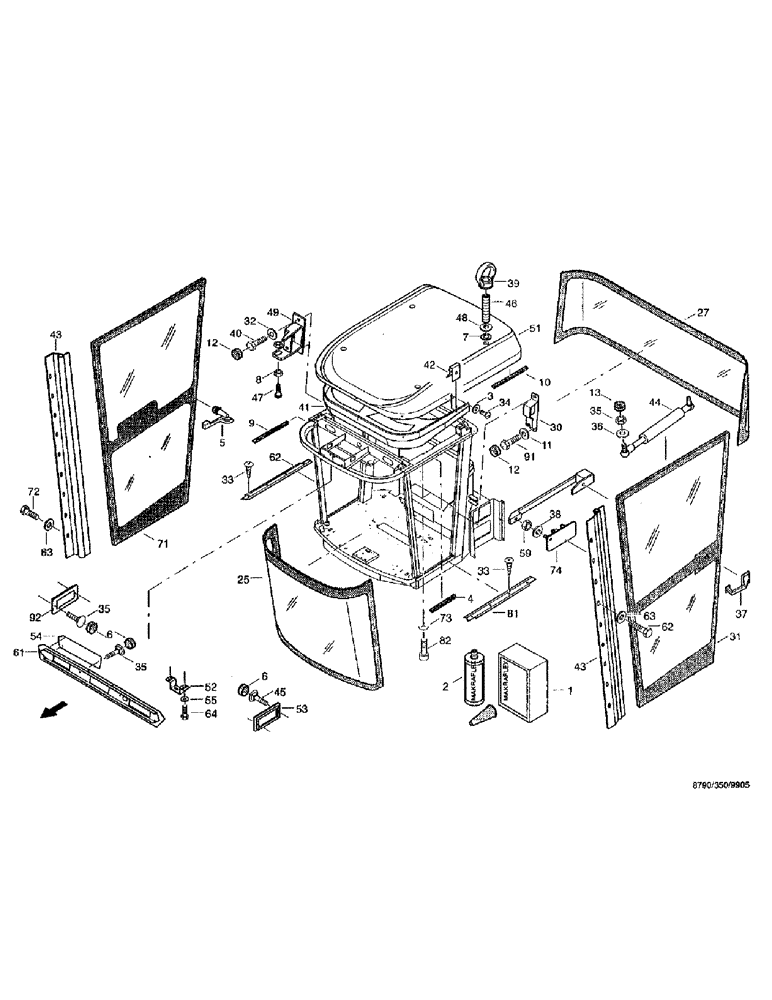

Запчасти Case IH 8790 (086) - CAB, COMPLETION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

01400001

FLECTOR

makroflex Fc-Set

1шт.

2

01400026

FLECTOR

makroflex Fc

1шт.

3

03020183

DISC

A6.4 DIN125 140HV

5шт.

4

01152991

SEAL, RUBBER

RUBBER SEAL profile

3шт.

5

05810055

STABILIZER

window stay, k

1шт.

6

03008306

CAP

KORRE x M4

14шт.

7

01444978

RUBBER WASHER

disc 17/35 x 4

4шт.

8

829-23416

THIN NUT,Thin, M16 x 1.5, Cl 05

2шт.

9

01152991

SEAL, RUBBER

RUBBER SEAL profile

3шт.

10

01458991

GASKET

seal profile, 3 x 10

2шт.

11

03020271

WASHER

8.4 DIN9021 140HV

2шт.

12

01409508

PLUG

CAP hex, M8

2шт.

13

01409508

PLUG

CAP hex, M8

4шт.

25

05810311

GLASS,CAB

windshield

1шт.

27

05810328

GLASS,CAB

rear window

1шт.

30

32506664

LOCK

wedge

1шт.

31

05810022

GLASS,CAB

door

1шт.

32

03020271

WASHER

8.4 DIN9021 140HV

2шт.

33

03020310

SCREW,M10 x 30mm

self-tapping, ST4.2 x 16-C-H DIN7982 A3R(SC

8шт.

34

03020038

SCREW

fillister head, M6 x 25-H DIN7985 5.8

5шт.

35

825-1408

NUT,M8, Cl 8

2шт.

36

03020206

WASHER

A8.4 DIN125 140HV

2шт.

37

05810030

LOCK ASSY

with rotating latch, k

1шт.

38

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

39

03289425

NUT

RING, M16 DIN582

4шт.

40

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

41

05810071

PROTECTIVE COVER

1шт.

42

05811353

SPRING NUT

5шт.

43

05810014

HINGE

2шт.

44

04013118

CYLINDER ASSY.

STRUT gas

1шт.

45

840-3430

SCREW,Pan, M4 x 30mm, Cl 4.8

Lens-head, DIN85 4.8

10шт.

46

06057690

ROD,THREADED

THREADED ROD PIN, M16 x 60 DIN913 45H

4шт.

47

05810272

SCREW

BOLT indexing

1шт.

48

895-11018

WASHER,M18 x 34 x 3

19 DIN125 ST

4шт.

49

32504043

RETAINER

SUPPORT

1шт.

51

05810096

SHELL

ROOF

1шт.

52

32503292

SHIN

BRACKET

6шт.

53

05810553

PROTECTIVE COVER

fuse

1шт.

54

05811361

PROTECTIVE COVER

RADIO

1шт.

55

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

12шт.

59

825-1406

NUT,M6, Cl 8

1шт.

61

05810537

COWL

Slab v

1шт.

62

32505663

RAIL

Door r

1шт.

63

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

18шт.

64

06334445

CAPSCREW

BOLT hexagon head, M6 x 20/8.8-A3C ISO4017

12шт.

71

05810578

GLASS,CAB

window

1шт.

72

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

18шт.

73

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

13шт.

74

32505140

PIVOT PLATE

bearing

1шт.

81

32505655

RAIL

door, l

1шт.

82

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

Cheese-head, DIN 912

13шт.

91

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

92

05810545

HOLDER

lamp bracket

1шт.
