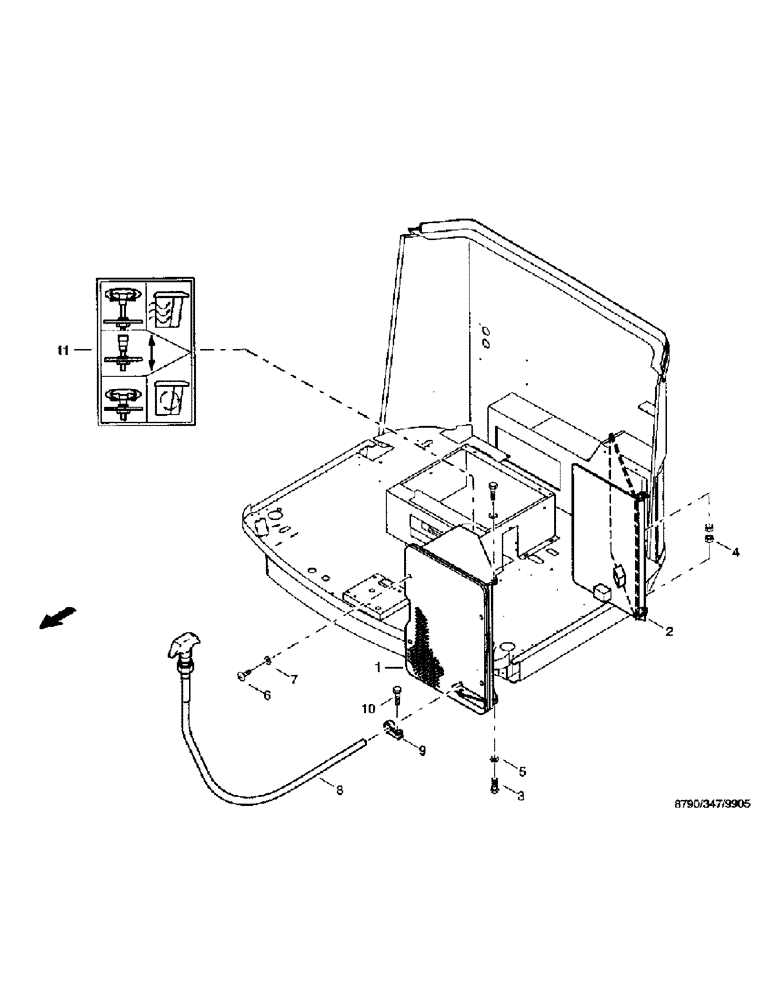

Запчасти Case IH 8790 (085) - CAB, RECIRCULATING AIR UNIT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

32506375

HOUSING ASSY.

1шт.

2

32506793

FLAP

door

1шт.

3

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

4

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

Hex

2шт.

5

03020183

DISC

WASHER, A6.4 DIN125 140HV

4шт.

6

03020013

SCREW

fillister head, M6 x 1.6-H DIN7985 5.8

4шт.

7

03020183

DISC

WASHER, A6.4 DIN125 140HV

4шт.

8

03322756

METAL ROPE

CABLE Bowden

1шт.

9

07053950

FIXING BRACKET

CLIP attaching, 1 x 4 DIN72571 ST

1шт.

10

03020005

SCREW,M10 x 30mm

self-tapping, ST4.8 x 16-C-H DIN7981 A3R(SC

1шт.

11

09169357

DECAL

SIGN prohibition

1шт.
