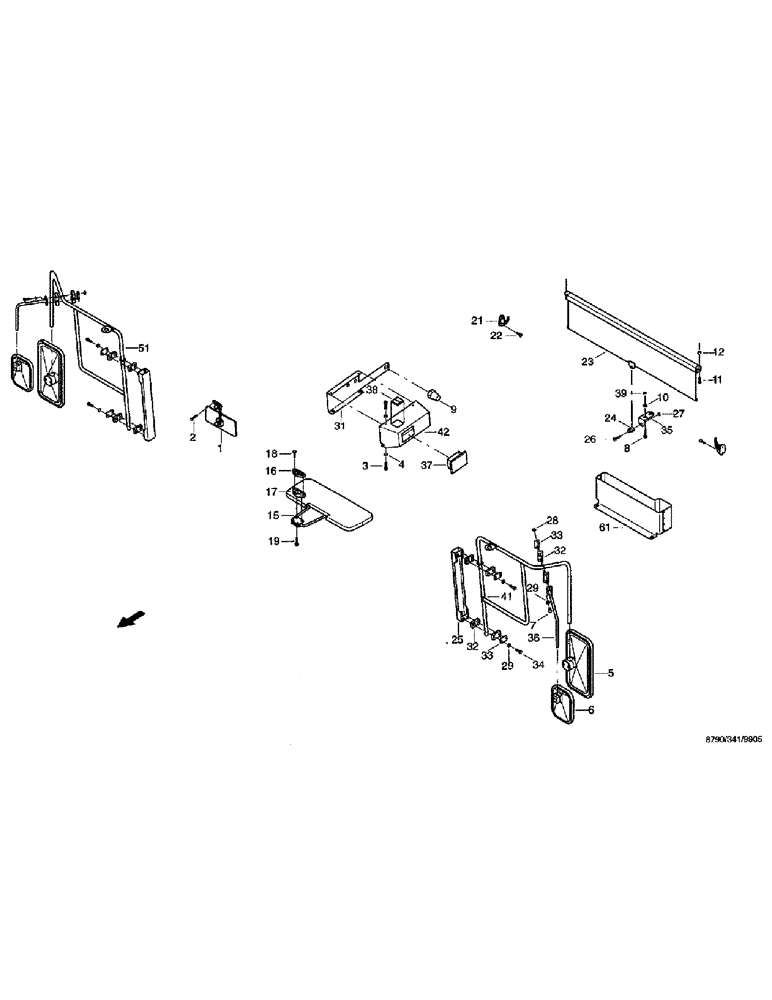

Запчасти Case IH 8790 (080) - CAB, INTERIOR EQUIPMENT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

04002412

MIRROR

inner, TYP 202

1шт.

2

03020327

SCREW,M10 x 30mm

self-tapping, ST4.8 x 38-C-H DIN7981 A3R(SC

3шт.

3

03020335

SCREW

fillister head, M6 x 20-H DIN7985 5.8

4шт.

4

03020222

WASHER

6.4 DIN9021 140HV

4шт.

5

04002404

MIRROR

outer, 51.3850.127

2шт.

6

04020760

MIRROR

wide angle rearview

2шт.

7

06310487

CAPSCREW

BOLT hexagon head, M6 x 50 ISO4014 8.8

4шт.

8

03020013

SCREW

fillister head, M6 x 16-H DIN7985 5.8

2шт.

9

01409524

PLUG

CAP hex, M6 GPN 1000/1069

1шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

11

840-3610

SCREW,Pan, M6 x 10mm, Cl 4.8

Lens-head, DIN85 4.8

2шт.

12

36257811

LARGE PIN

PIN, LARGE PULLEY stud, guide

2шт.

15

05811298

VISOR, SUN

1шт.

16

36277237

PLATE

1шт.

17

36277245

RETAINER

SUPPORT

1шт.

18

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

19

03020013

SCREW

fillister head, M6 x 16-H DIN7985 5.8

2шт.

21

06603320

HOOK

wardrobe

2шт.

22

06388072

SCREW

self-tapping, ST3.5 x 22-C-H DIN7983 A3R (S

4шт.

23

05811265

SHIFTER ROLLER

cassette shade

1шт.

24

05811273

BUTTON

1шт.

25

32505880

RETAINER

SUPPORT

2шт.

26

06087671

SCREW

raised countersunk head, M4 x 25 DIN964 4.8

1шт.

27

825-1404

NUT,M4, Cl 8

1шт.

28

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

Hex

4шт.

29

03020183

DISC

WASHER, A6.4 DIN125 140HV

12шт.

31

32505784

RETAINER

SUPPORT

1шт.

32

06648035

SHIN

clamping halves, L-KP-3-R-20 DIN3015 PA

6шт.

33

36290476

COVER

plate

6шт.

34

06310470

CAPSCREW

BOLT hexagon head, M6 x 40 ISO4014 8.8

8шт.

35

36257828

ANGLE BAR

1шт.

36

36277044

SHIN

BRACKET

2шт.

37

98045960

AUGER

BOX ash

1шт.

38

07069564

END

piece

2шт.

39

825-1406

NUT,M6, Cl 8

2шт.

41

36275975

HOLDER

mirror support, l

1шт.

42

32506213

HOOD

COVER sheet metal

1шт.

51

36275991

HOLDER

mirror support r

1шт.

61

36276092

BINDER

document deposit

1шт.
