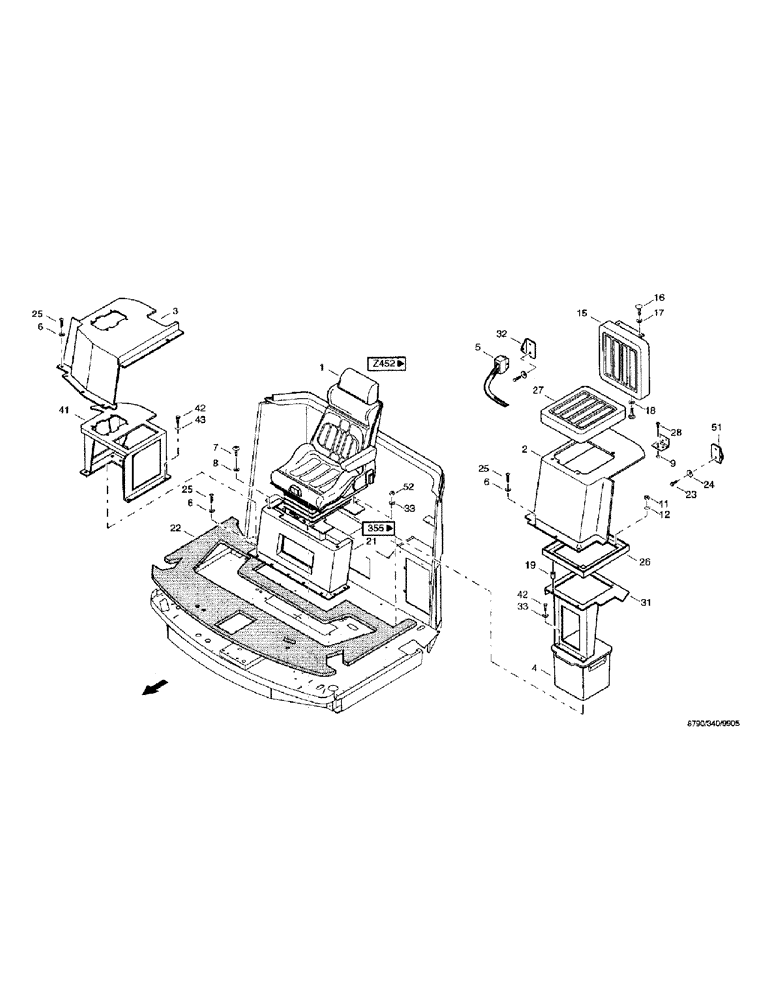

Запчасти Case IH 8790 (078) - CAB, INTERIOR EQUIPMENT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

04007007

SEAT

SET driver's

1шт.

2

05810135

COWL

trim l

1шт.

3

05810143

COWL

trim r

1шт.

4

05810151

COOLER

refrigerating box

1шт.

5

05810883

SAFETY BELT

STRAP roll, NACHR.SATZ

1шт.

6

06510035

WASHER

4.3 DIN9021 140HV

17шт.

7

03020335

SCREW

fillister head, M6 x 20-H DIN7985 5.8

4шт.

8

03020222

WASHER

6.4 DIN9021 140HV

4шт.

9

825-1404

NUT,M4, Cl 8

6шт.

11

825-1406

NUT,M6, Cl 8

4шт.

12

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

15

05810600

BACKREST

1шт.

16

03020335

SCREW

fillister head, M6 x 20-H DIN7985 5.8

3шт.

17

03020183

DISC

WASHER, A6.4 DIN125 140HV

2шт.

18

06510228

WASHER

6.4 DIN9021

1шт.

19

01162462

RUBBER BLOCK

STOP, F1023

2шт.

21

05810127

COWL

trim v

1шт.

22

05810344

FLOOR MAT

foot

1шт.

23

614-8022

BOLT,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

24

06577028

SPECIAL WASHER

M8

4шт.

25

760-34313

SELF-TAP SCREW,Pan Hd, M4.2 x 13

17шт.

26

32503540

FRAME

seat

1шт.

27

05810594

LARGE PLATE

PLATE, LARGE seat

1шт.

28

97008751

SCREW

countersunk, M4 x 18 DIN963 4.8 VZ

6шт.

31

32505438

FRAME

l

1шт.

32

32506912

SHIN

STRAP, r

1шт.

33

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

41

32506117

RACK

FRAME, r

1шт.

42

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

9шт.

43

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

8.4 DIN9021 140HV

5шт.

51

32506904

SHIN

STRAP, l

1шт.

52

825-1408

NUT,M8, Cl 8

4шт.
