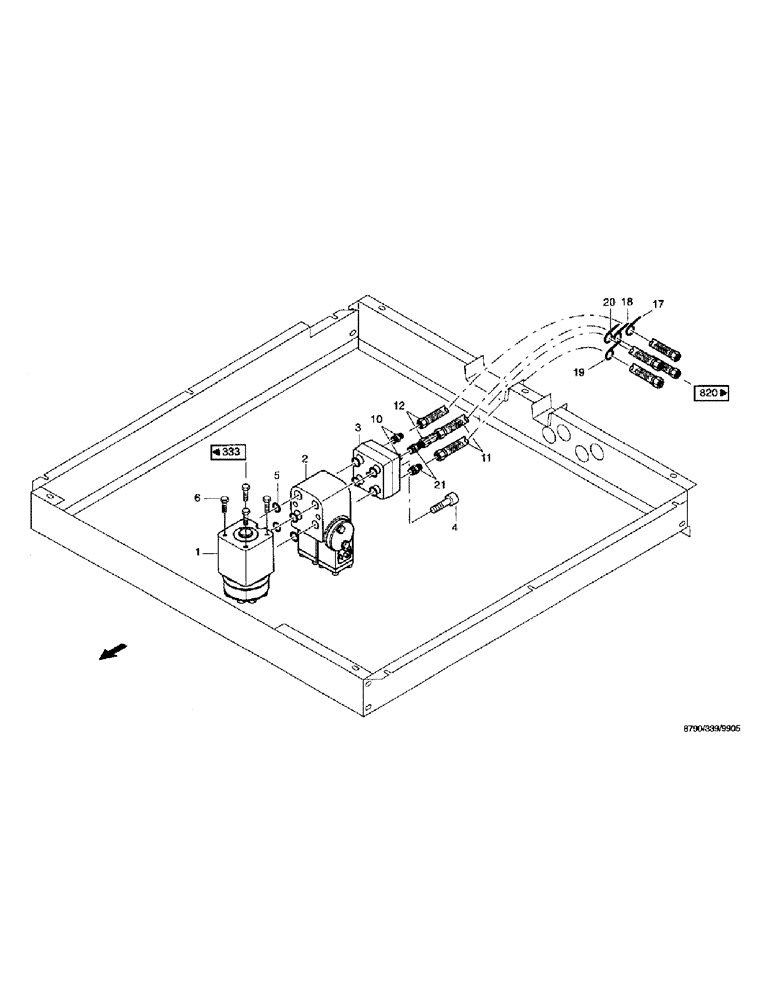

Запчасти Case IH 8790 (077) - CAB, STEERING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

03127667

STEERING ASSY

OSPB160ON

1шт.

2

03127691

VALVE POPPET

magnet

1шт.

3

03127650

VALVE BLOCK

OVP20

1шт.

4

06282754

SCREW

cheese-head, M10 x 1 x 120 DIN912 10.9

2шт.

5

01139430

O-RING

23.47 x 2.62 NBR90

4шт.

6

614-10018

BOLT,Hex, M10 x 1.5 x 18mm, Cl 8.8, Full Thd

ISO4017

4шт.

10

03791663

RESTRICTOR

CONNECTOR male, GE12-L/R1/2-ED/OMD

2шт.

11

06545375

LINE

HOSE, 2SN12DKOLDKOL-1350

2шт.

12

06545383

LINE

HOSE, 2SN10DKOLDKOL-1240

2шт.

17

07077636

CLAMP

CABLE band, rt 160 x 4.8

1шт.

18

07077644

CLAMP

CABLE band, bl 160 x 4.8

1шт.

19

07069900

CABLE

band, 120 x 4.8 TSL-120-S/C

1шт.

20

07077652

CLAMP

CABLE band, ge 160 x 4.8

1шт.

21

03434218

ADAPTER

CONNECTOR male, GE15-LR-ED/OMD/A3C

2шт.
