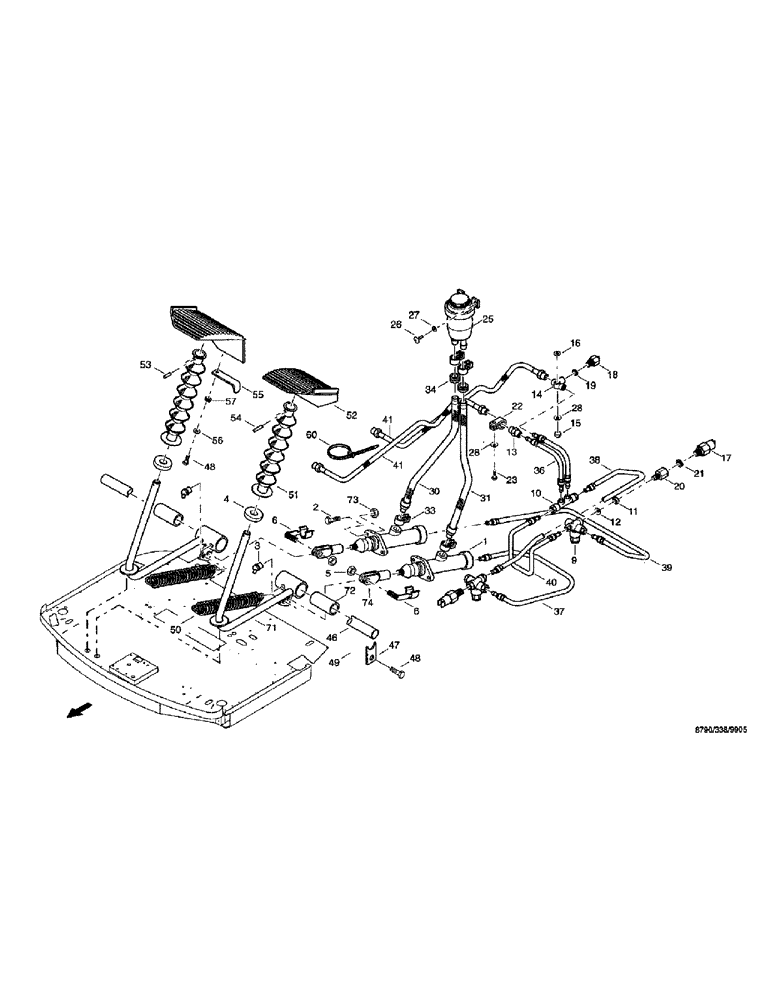

Запчасти Case IH 8790 (074) - CAB, BRAKE SYSTEM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

04040153

MASTER CYLINDER

CYLINDER,MASTER BRAKE

2шт.

2

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

3

03640746

LUBE NIPPLE,45º, M8 x 1

grease, BM8 x 1 DIN71412

1шт.

4

02817546

SPACER

30/65 x 10 50SHORE

1шт.

5

825-1410

NUT,M10, Cl 8

2шт.

6

98013390

LARGE PIN

PIN, LARGE BOLT, ES-NORM 01 ES 10 x 20

2шт.

9

04001645

PRESSURE LIMITER

LEVER, 40BAR

2шт.

10

04121129

VALVE

compensating, sw

1шт.

11

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

3шт.

12

06577028

SPECIAL WASHER

M8

3шт.

13

01330897

ADAPTER

PIECE intermediate

1шт.

14

04002670

3 WAY CONNECTION

1шт.

15

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

16

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

17

07077355

SWITCH, PRESSURE

PRESSURE SWITCH 22BAR

2шт.

18

98032751

IGNITION SWITCH

brake-light

1шт.

19

04102168

GASKET

SEAL, A10 x 13.5 DIN7603 CU

3шт.

20

36270938

ADAPTER

ADAPTION

2шт.

21

04102184

GASKET

SEAL, A12 x 15.5 DIN7603 CU

2шт.

22

98041495

FIXING BRACKET

CLIP attaching, RSGU1.15/15-W1

1шт.

23

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

25

02818081

RESERVOIR

VESSEL compensator

1шт.

26

03020335

SCREW

fillister head, M6 x 20-H DIN7985 5.8

2шт.

27

03020222

WASHER

6.4 DIN9021 140HV

2шт.

28

06577036

SPECIAL WASHER

M6

2шт.

30

36289964

HOSE

connecting, Pt 13 x 7-290 mm

1шт.

31

36289972

HOSE

connecting, Pt 13 x 7-350 mm

1шт.

33

06659101

CLAMP

CLIP hose, AL10-16 DIN3017 W1-1

4шт.

34

01147510

GROMMET

A16 x 4

2шт.

36

02818032

BRAKE LINE

2шт.

37

02817931

BRAKE LINE

L1

1шт.

38

02817948

BRAKE LINE

L2

1шт.

39

02817956

BRAKE LINE

R1

1шт.

40

02817964

BRAKE LINE

R2

1шт.

41

32522496

HOSE

BRAKE

2шт.

46

04064926

SHAFT

1шт.

47

36206867

STIRRUP

BRACKET

1шт.

48

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

49

06116155

NUT,M8, Cl 8

1шт.

50

06736252

TENSION SPRING

C3.6 x 32 x 32 E35 3 18397

2шт.

51

03240514

BELLOWS

FORM NR.T12368

2шт.

52

02093516

PEDAL

2шт.

53

838-5840

LOCK PIN,M8 x 40, Slotted

DIN1481 FST

1шт.

54

838-5860

LOCK PIN,M8 x 60, Slotted

Roll, DIN1481 FST

1шт.

55

04064943

LEVER

1шт.

56

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

8.4 DIN9021 140HV

1шт.

57

97025021

BELLEVILLE SPRING

20 x 10.2 x 1.0 DIN2093 CK67

1шт.

60

07077636

CLAMP

BAND cable, rt 160 x 4.8

1шт.

71

36273395

PEDAL

BRAKE

1шт.

72

98029206

PLASTIC RING

BUSHING

2шт.

73

06116155

NUT,M8, Cl 8

4шт.

74

97058009

CRADLE

YOKE, G10 x 20 DIN71752 9S20K

2шт.
