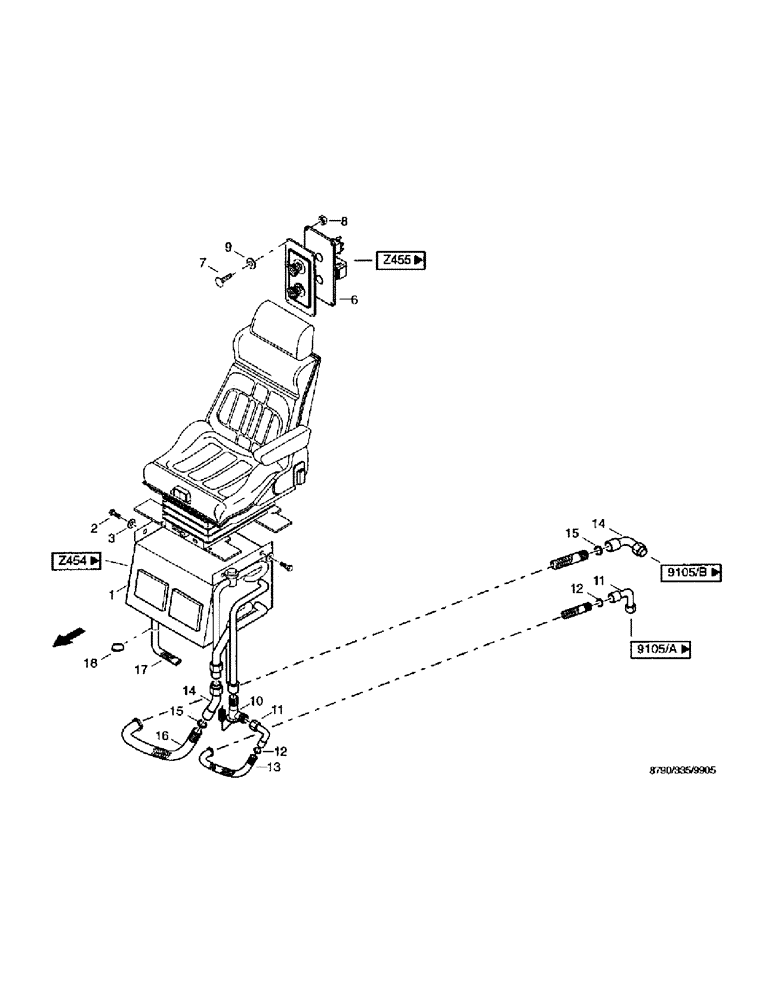

Запчасти Case IH 8790 (072) - CAB, AIR CONDITIONER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

07090030

AIR CONDITIONER

VD2035

1шт.

2

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

3

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

8.4 DIN9021 140HV

4шт.

6

07090022

PANEL, INSTRUMENTS

PANEL, INSTRUMENT LEVER control

1шт.

7

06020115

SCREW

lens-head, M4 x 16 DIN85 4.8

4шт.

8

825-1404

NUT,M4, Cl 8

4шт.

9

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm)

4шт.

10

05811128

VALVE

expansion

1шт.

11

05811160

FITTING

INSTRUMENT, NW8/90GR.5/8ZOLL

2шт.

12

05811208

O-RING

5/8ZOLL NW8

2шт.

13

05811345

LARGE HOSE

HOSE,LARGE water cooling, NW8

2шт.

14

05811320

FITTING

INSTRUMENT, NW12/45GR.7/8ZOLL

2шт.

15

05811224

O-RING

7/8ZOLL NW12

2шт.

16

05811152

LARGE HOSE

HOSE,LARGE water cooling, NW12 3.80M

1шт.

17

05811015

LARGE HOSE

HOSE,LARGE rubber, 10 x 15-0.5M

1шт.

18

06659101

CLAMP

CLIP hose, AL10-16 DIN3017 W1-1

1шт.
