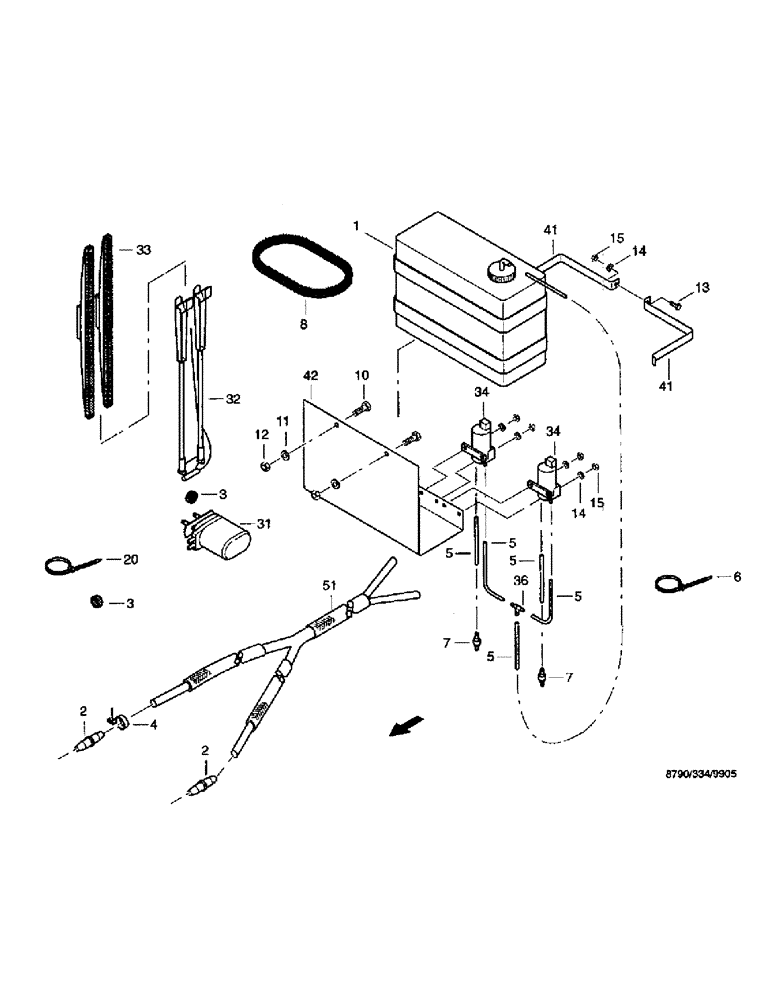

Запчасти Case IH 8790 (071) - CAB, WINDSCREEN WASHER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

07076668

RETAINER

BOX washing

1шт.

2

03128338

CONNECTION

HOSE coupling

2шт.

3

01147488

GROMMET

A8 x 4

2шт.

4

02888406

CLAMP

CLIP pipe, D2-12-13/15W1-1 DIN3016

4шт.

5

07076723

LARGE HOSE

HOSE,LARGE rubber, L = 1M

1шт.

6

07069900

CABLE

band, 120 x 4.8 TSL-120-S/C

5шт.

7

03123831

CHECK VALVE

2шт.

8

01403350

PROTECTION STRIP

1-3 mm

1шт.

10

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

12

825-1408

NUT,M8, Cl 8

2шт.

13

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

5шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

5шт.

15

825-1406

NUT,M6, Cl 8

5шт.

20

07069900

CABLE

band, 120 x 4.8 TSL-120-S/C

10шт.

31

07076748

WIPER MOTOR

MOTOR, WIPER

1шт.

32

07076756

WIPER ARM

ARM, WIPER

1шт.

33

07076764

WIPER BLADE

BLADE, WIPER

1шт.

34

07076676

PUMP

12V

2шт.

36

07076731

TEE

PIECE

1шт.

41

07089744

SHEET

BRACKET clamping

2шт.

42

36267323

CARRIER

SUPPORT

1шт.

51

36268525

HARNESS

SET hose

1шт.
