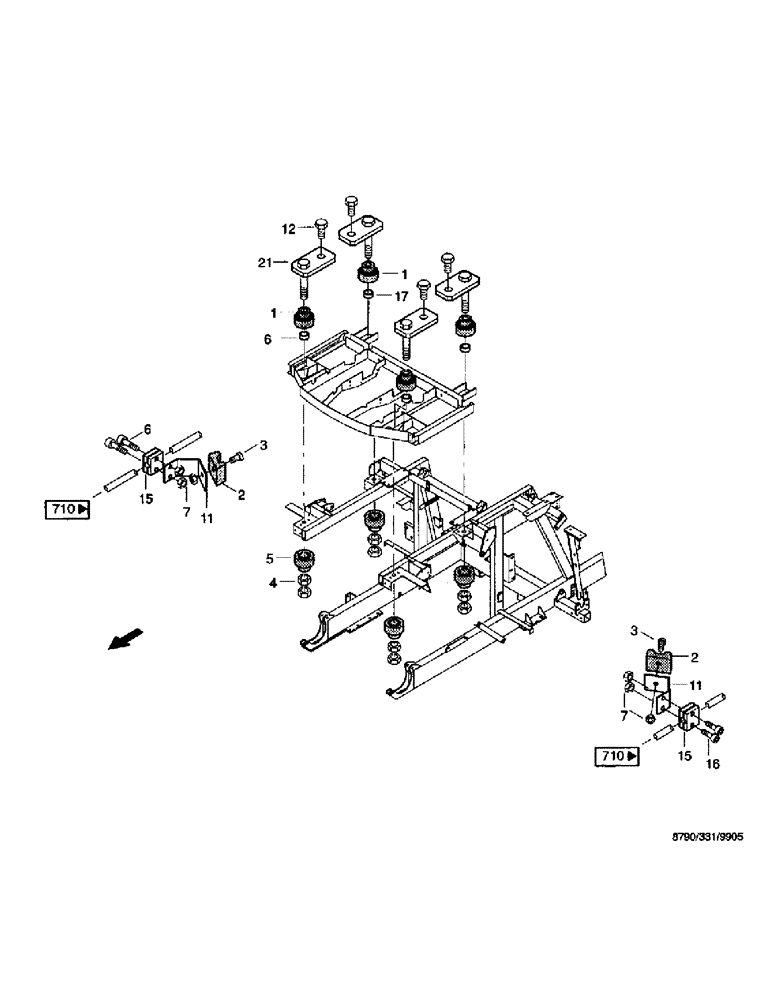

Запчасти Case IH 8790 (065) - CAB, ASSEMBLY PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

01167692

DAMPER

vibration, 100ZF/12.5/10-1277

4шт.

2

01139752

RUBBER BLOCK

STOP, FUß25 FORM1821

2шт.

3

06005630

SCREW

cheese-head, M6 x 20 DIN84 4.8

2шт.

4

829-4412

NUT,Thin, M12 x 1.75, Cl 5

hex, M12/04-A3C ISO4035

8шт.

5

01148021

DAMPER

vibration, 75B/12.5-1259

4шт.

6

36257803

SLEEVE

2шт.

7

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

Hex

6шт.

11

36268293

ANGLE

2шт.

12

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

15

06645764

CLAMP

halves, L-KP-4-G-28 DIN3015 PA

2шт.

16

864-6040

HEX SOC SCREW,M6 x 40mm, Cl 8.8

Cheese-head

4шт.

17

36280007

SLEEVE

2шт.

21

36276051

LARGE PIN

PIN, LARGE BOLT ASSY.

4шт.
