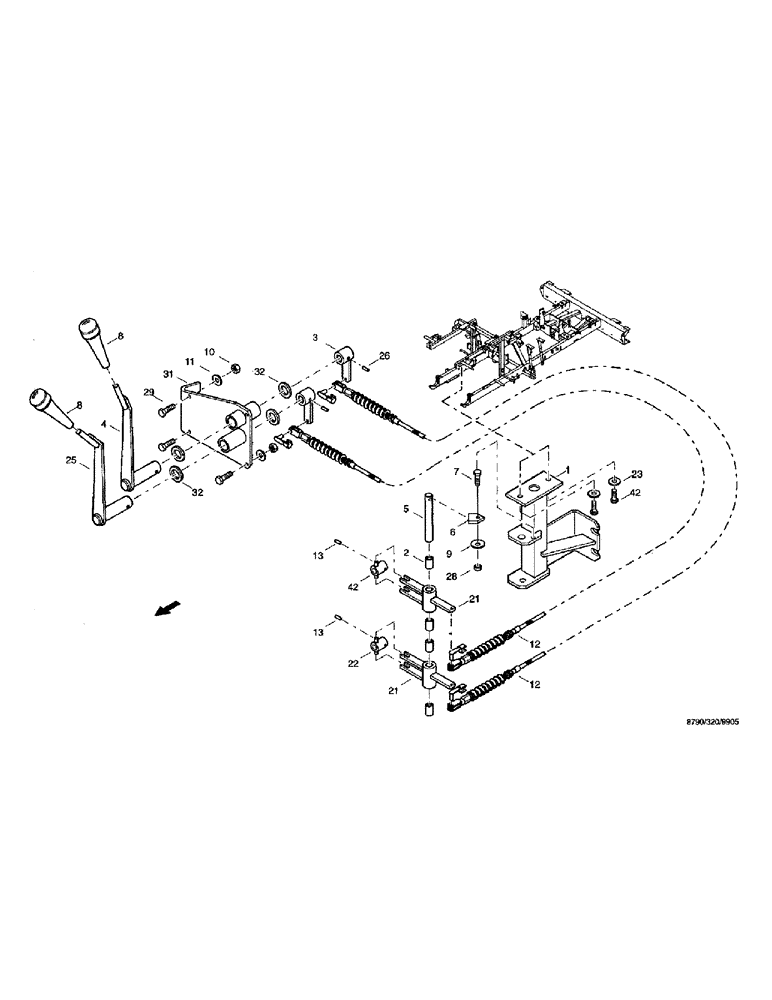

Запчасти Case IH 8790 (064) - OPERATORS PLATFORM, GEAR SHIFT - 36266693 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

36266693

LEVER GUIDE

BASE gear

1шт.

2

01308175

BUSHING

SLEEVE, 25/28 x 30

2шт.

3

36266837

LEVER

1

2шт.

4

36275034

LEVER

2

1шт.

5

36216274

LARGE PIN

PIN, LARGE

1шт.

6

36266933

PLATE, LOCKING

1шт.

7

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

12шт.

8

03716934

HANDLE

GN718-45-B12-T

2шт.

9

06577124

LOCK WASHER

B6

1шт.

10

825-1408

NUT,M8, Cl 8

4шт.

11

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

8.4 DIN9021 140HV

4шт.

12

04006721

CONTROL SLIDE

ACTUATION, push-pull

2шт.

13

838-5830

LOCK PIN,M8 x 30, Slotted

Roll, DIN1481 FST

2шт.

21

36266757

CONTROL LEVER

gear-shift

1шт.

22

36216241

FITTING

CONNECTOR

2шт.

23

895-25012

WASHER,M12 x 37 x 3

13 DIN9021 140HV

2шт.

25

36275042

LEVER

3

1шт.

26

838-5840

LOCK PIN,M8 x 40, Slotted

DIN1481 FST

2шт.

28

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

Hex

1шт.

29

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

31

36266798

BEARING

1шт.

32

895-11024

WASHER,M24 x 44 x 4

25 DIN125 ST

4шт.

42

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

2шт.
