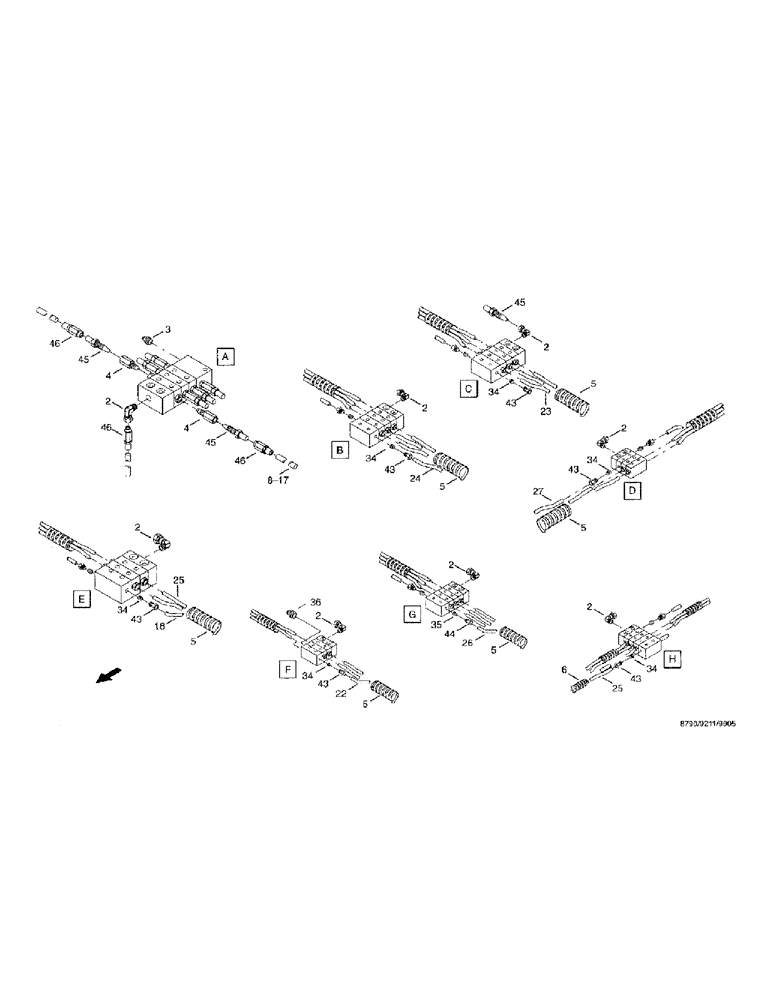

Запчасти Case IH 8790 (239) - CENTRAL LUBRICATION SYSTEM, DISTRIBUTOR COMBINATIONS (71) - LUBRICATION SYSTEM

2

03128057

ELBOW

UNION, M10 x 1K

8шт.

3

03128313

SCREW

locking

3шт.

4

03128321

VALVE

check

7шт.

5

01451550

LOOM

HOSE spiral, 8

18шт.

6

01451550

LOOM

HOSE spiral, 8

3шт.

8

01451534

HOSE

high pressure, 8.3 x 2.1

3шт.

11

01451534

HOSE

high pressure, 8.3 x 2.1

1шт.

12

01451534

HOSE

high pressure, 8.3 x 2.1

5шт.

13

01451534

HOSE

high pressure, 8.3 x 2.1

4шт.

14

01451534

HOSE

high pressure, 8.3 x 2.1

5шт.

15

01451534

HOSE

high pressure, 8.3 x 2.1

2шт.

16

01451534

HOSE

high pressure, 8.3 x 2.1

2шт.

17

01451534

HOSE

high pressure, 8.3 x 2.1

4шт.

18

01451542

PIPE

hose, 6 x 1.5

5шт.

19

01451542

PIPE

hose, 6 x 1.5

2шт.

21

01451542

PIPE

hose, 6 x 1.5

7шт.

22

01451542

PIPE

hose, 6 x 1.5

7шт.

23

01451542

PIPE

hose, 6 x 1.5

7шт.

24

01451542

PIPE

hose, 6 x 1.5

8шт.

25

01451542

PIPE

hose, 6 x 1.5

4шт.

26

01451542

PIPE

hose, 6 x 1.5

7шт.

27

01451542

PIPE

hose, 6 x 1.5

6шт.

34

03128387

SEAT

RING double conical, DKR6

41шт.

35

03128387

SEAT

RING double conical, DKR6

10шт.

36

03128313

SCREW

locking

1шт.

43

03128354

TUBE NUT

BOLT, US6M10 x 1

41шт.

44

03128354

TUBE NUT

BOLT, US6M10 x 1

10шт.

45

03128290

FITTING

TUBE

8шт.

46

03124221

BUSHING

SOCKET screw, 1001 21 200-8.3 x 2.1

8шт.
