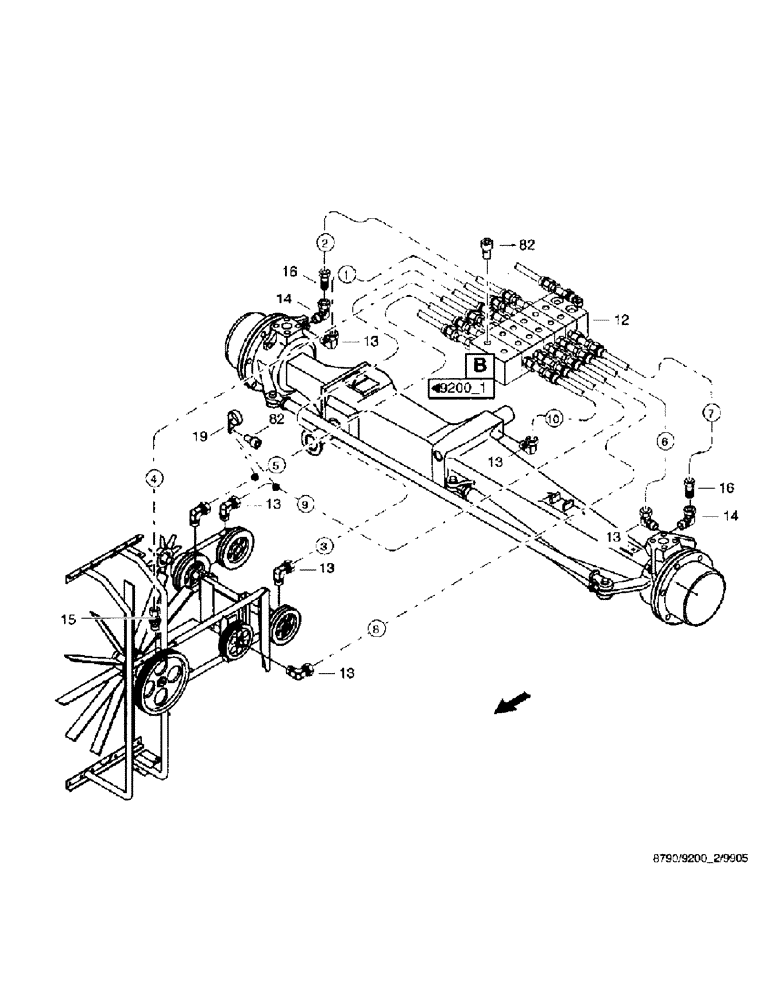

Запчасти Case IH 8790 (232) - CENTRAL LUBRICATION SYSTEM, UNIT (71) - LUBRICATION SYSTEM

29

03128057

ELBOW

UNOIN, M10 x 1K

2шт.

30

03128073

EXTENSION

M8 x 1K

2шт.

31

98041495

FIXING BRACKET

CLIP attaching, 1.15/15-W1

4шт.

32

03128145

RESTRICTOR

LUBRICATION rail, 3/6

1шт.

33

03128098

FITTING

CONNECTION instrument screwed, M10 x 1K

2шт.

34

03128156

FITTING

SCREWING right-angle, M8 x 1K 90

2шт.

35

03128065

FITTING

CONNECTION instrument screwed, M8 x 1K

4шт.

36

03128668

FLOW DIVIDER

LUBRICATION rail, 3/5

1шт.

37

03128040

ELBOW

UNION, M8 x 1K

3шт.

38

03128065

FITTING

CONNECTION instrument screwed, M8 x 1K

1шт.

39

03128073

EXTENSION

M8 x 1K

1шт.

40

03128057

ELBOW

UNION, M10 x 1K

1шт.

41

02884812

CLAMP

CLIP pipe, 1.6/12-W1 DIN3016

1шт.

42

03128178

RESTRICTOR

LUBRICATION rail, 4/8

1шт.

43

03128040

ELBOW

UNION, M8 x 1K

6шт.

44

03128065

FITTING

CONNECTION instrument screwed, M8 x 1K

2шт.

45

02884812

CLAMP

CLIP pipe, 1.6/12-W1 DIN3016

1шт.

46

03128200

CLAMP

CLIP pipe, 1.12/15-W1 DIN3016

2шт.

47

03128483

FLOW DIVIDER

LUBRICATION rail, 4/8

1шт.

48

03128040

ELBOW

UNION, M8 x 1K

4шт.

49

03128057

ELBOW

UNION, M10 x 1K

4шт.

50

03128073

EXTENSION

M8 x 1K

1шт.

51

02884812

CLAMP

CLIP pipe, 1.6/12-W1 DIN3016

2шт.

52

03128200

CLAMP

CLIP pipe, 1.12/15-W1 DIN3016

2шт.

53

98041495

FIXING BRACKET

CLIP attaching, RSGU1.15/15-W1

1шт.
