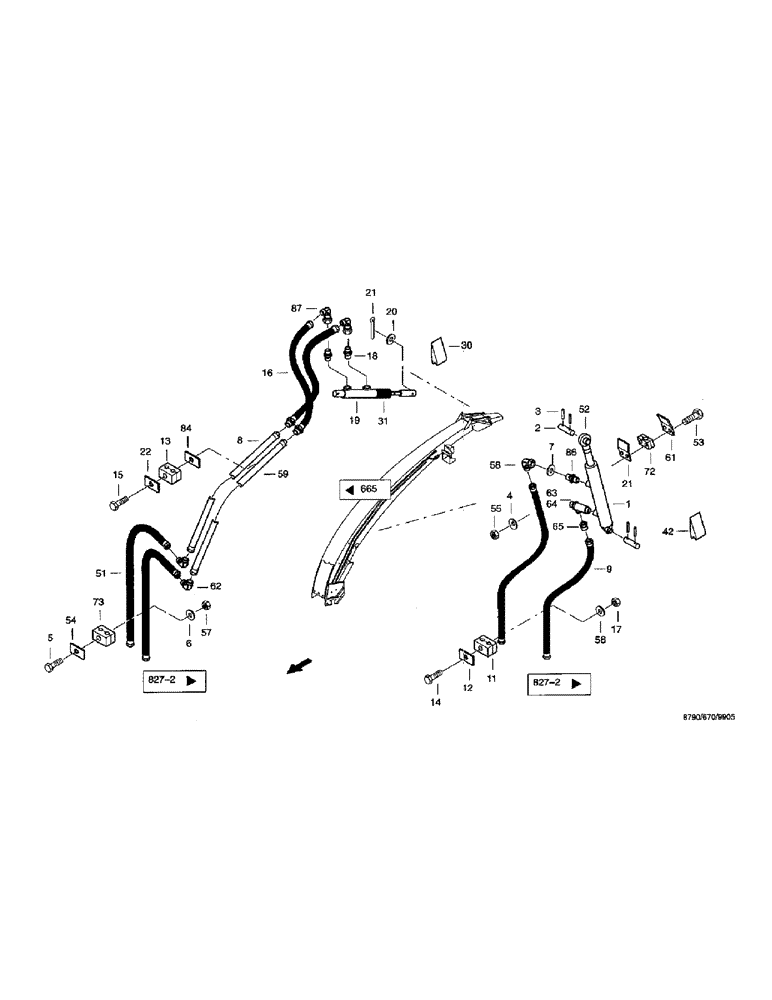

Запчасти Case IH 8790 (147) - EJECTING DEVICE, HYDRAULIC EQUIPMENT (70) - EJECTION

1

02122589

CYLINDER ASSY.

hydraulic, HUB 200 mm 40/22/50 E-BLAU

1шт.

2

04092527

LARGE PIN

PIN, LARGE 84 mm

2шт.

3

06161537

SPLIT PIN/SAFETY PIN

roll, 5 x 50 DIN1481

4шт.

4

97022008

RING, SNAP

RING SNAP locking, VSK6

2шт.

5

614-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8, Full Thd

1шт.

6

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

8.4 DIN9021 140HV

1шт.

7

04101608

GASKET

SEAL, A18 x 22 DIN7603 CU

1шт.

8

09124420

TUBE ASSY.

PIPE cpl., k

1шт.

9

04120434

HOSE,1750.00 mm

2SN6DKOLDKOL

2шт.

11

98032929

CLAMP

CLIP double attaching, GR.II 215/15 PP

1шт.

12

98032930

COVER

PLATE, GR.II DS-GD

1шт.

13

98039816

CLAMP

CLIP double attaching, GR.I 108/08 PP

5шт.

14

614-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8, Full Thd

1шт.

16

04120729

HOSE,500.00 mm

02SN6DKOLCEL

2шт.

17

825-1408

NUT,M8, Cl 8

1шт.

18

97080471

FITTING

SOCKET, L8M DIN3901B XGE

2шт.

19

03111342

CYLINDER ASSY.

hydraulic, KLAPPENVERST

1шт.

20

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

2шт.

21

06402730

PIN, SPLIT (COTTER)

PIN, COTTER splint, 5 x 32 DIN94 ST

2шт.

22

32528268

PLATE

5шт.

30

98045076

GASKET KIT

SEAL

1шт.

31

98043608

BELLOWS

23.13

1шт.

42

98042689

GASKET KIT

SEAL

1шт.

51

04093757

HOSE,6.40 mm ID x 1200.00 mm

2SN6DKOLDKOL

2шт.

52

04093418

COUPLING

JOINT ball, 4.84-20M 18 x 1.5

1шт.

53

814-6055

BOLT,Hex, M6 x 1 x 55mm, Cl 8.8

2шт.

54

98032930

COVER

PLATE, GR.II DS-GD

1шт.

55

825-1406

NUT,M6, Cl 8

2шт.

56

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

8.4 DIN9021 140HV

1шт.

57

825-1408

NUT,M8, Cl 8

1шт.

58

97080278

ELBOW

1шт.

59

09124422

TUBE ASSY.

PIPE cpl., k

1шт.

61

04122780

RETAINER

SUPPORT, 75 mm

2шт.

62

97083118

FITTING

SOCKET

2шт.

63

97081347

CASE

HOUSING x SWVE12-SM

1шт.

64

98043198

VALVE

throttle, DOPPELWIRKEND

1шт.

65

97083042

RESTRICTOR

adapter flow reduc., KOR12-S/8-L-OMDK

1шт.

72

98039749

CLAMP

CLIP single attaching, 322 PP

1шт.

73

98032929

CLAMP

CLIP double attaching, GR.II 215/15 PP

1шт.

15

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

5шт.

84

98039766

COVER

PLATE, GR.I DS-AS

5шт.

86

97080282

FITTING

SOCKET x GE 8-LM-A3C M18 x 1.5

1шт.

87

97080278

ELBOW

EVW8-L OMDK

2шт.
