(144) - EJECTING DEVICE, ELECTRICAL EQUIPMENT

Запчасти Case IH 8790 (144) - EJECTING DEVICE, ELECTRICAL EQUIPMENT (70) - EJECTION

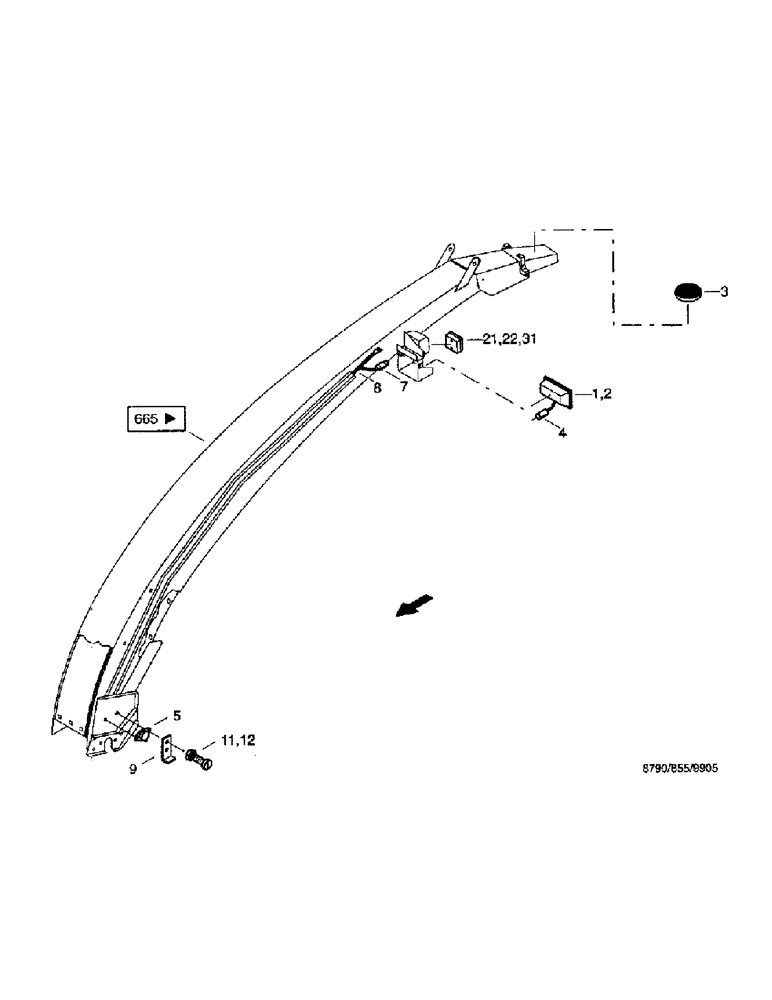

Схема запчастей Case IH 8790 - (144) - EJECTING DEVICE, ELECTRICAL EQUIPMENT (70) - EJECTION
21
7
3
12
4
1
2
11
8
31
9
5
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

07034997

BULB

filament lamp H3-55W-12V DIN72601

2шт.

2

01119501

LAMP, WORK

LIGHT, WORK

1шт.

3

98031997

REFLECTOR

rt D80

1шт.

4

98039826

SLEEVE

HOUSING base, VPE2000STK NATUR

2шт.

5

07069267

SOCKET/RECEPTACLE

4-POLIG

2шт.

7

98039843

HOUSING

PLUG, VPE800STK

2шт.

8

04120656

WIRE HARNESS

loom KRÜMMER

1шт.

9

36238046

ANGLE BAR

1шт.

11

06003805

SCREW,Hex Skt, M4 x 25mm, Cl 4.8

cheese-head, M4 x 25 DIN84 4.8

2шт.

12

825-1404

NUT,M4, Cl 8

1шт.

21

07067683

BULB

LAMP filament, R10W-12V VPE10STK DIN7260

1шт.

22

07024794

BULB

LAMP filament, P21W-12V DIN72601

1шт.

31

98041371

LIGHT

turn, brake, rear

1шт.
