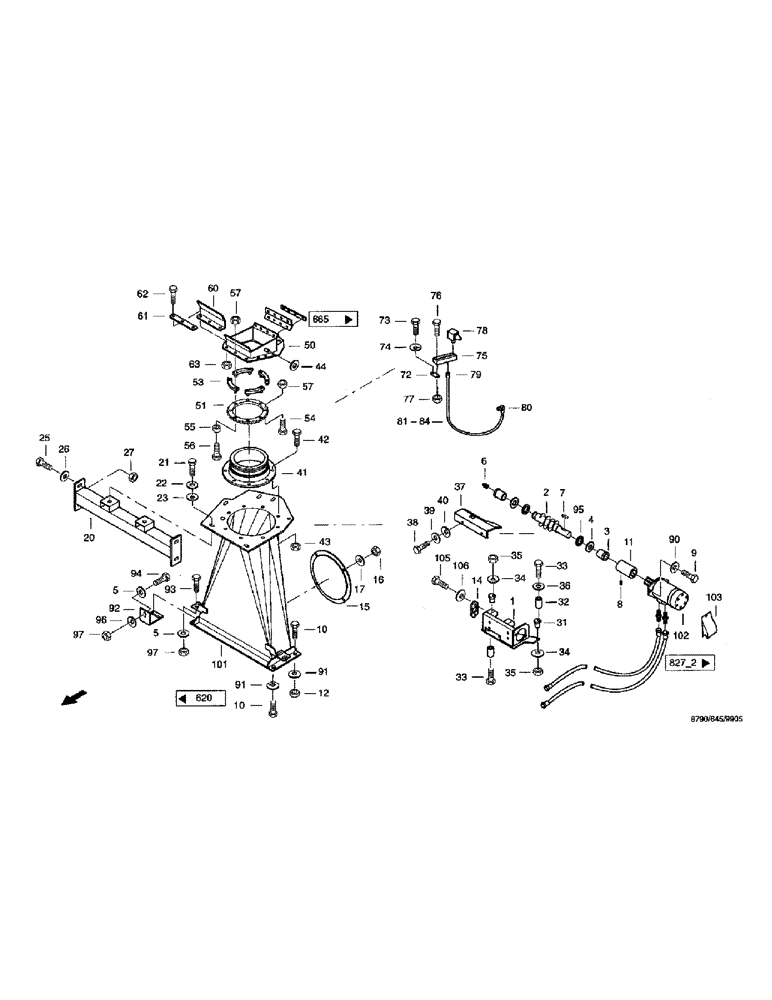

Запчасти Case IH 8790 (141) - EJECTING DEVICE, PIVOTING MECHANISM (70) - EJECTION

1

36271135

BEARING

k

1шт.

2

03063820

SPINDLE

1шт.

3

04113250

RING

BUSH bronze

2шт.

4

04117202

WASHER

2шт.

5

06562038

WASHER

13 DIN7349 ST

10шт.

6

03640746

LUBE NIPPLE,45º, M8 x 1

grease, BM8 x 1 DIN71412

1шт.

7

03501190

BUCKET TOOTH KEY

flat, A8 x 7 x 32 DIN6885

1шт.

8

97013742

PIN

threaded, M10 x 12 DIN916 8.8

1шт.

9

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

10

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

9шт.

11

04117774

TRANSMISSION SLEEVE

1шт.

12

825-1410

NUT,M10, Cl 8

7шт.

14

36271151

SHIN

STRAP

1шт.

15

36248128

COVER

CAP

1шт.

16

825-1408

NUT,M8, Cl 8

4шт.

17

06577028

SPECIAL WASHER

M8

4шт.

20

36249040

CONNECTION

COUPLER

1шт.

21

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

22

06562038

WASHER

13 DIN7349 ST

2шт.

23

06577011

PLATE, LOCKING

WASHER, M12

2шт.

25

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

4шт.

26

06562183

WASHER

17 DIN7349 ST

8шт.

27

832-41316

NUT,M16 x 2, Cl 10

Hex

4шт.

31

04063819

ECCENTRIC

3шт.

32

04112974

SPACER

bushing

3шт.

33

814-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

3шт.

34

06577011

PLATE, LOCKING

WASHER, M12

3шт.

35

829-1412

NUT,M12, Cl 10.9

3шт.

36

895-25012

WASHER,M12 x 37 x 3

13 DIN9021 140HV

1шт.

37

04121339

LARGE PLATE

PLATE, LARGE PANEL, k

1шт.

38

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

39

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

40

97022010

RING, SNAP

RING SNAP RING locking, VSK8

2шт.

41

36274982

PLATE

intermediate piece

1шт.

42

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

8шт.

43

337475

NUT,M12, Cl 10

8шт.

44

04023701

WASHER

25.1 x 45 x 4

2шт.

50

36270874

RESTRICTOR

crop chute base

1шт.

51

02085574

SLEWING RING

toothed rim D = 324/425

1шт.

53

36274523

SEGMENT

k

4шт.

54

827-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 10.9

7шт.

55

04129396

BUSHING

SLEEVE, 24 mm

1шт.

56

97003542

CAPSCREW

BOLT hexagon head, M12 x 150 ISO4014 10.9

1шт.

57

337475

NUT,M12, Cl 10

4шт.

60

04121002

SCRAPER

177 x 296

1шт.

61

03121004

SHIN

STRAP

1шт.

62

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

63

06116155

NUT,M8, Cl 8

2шт.

72

04121006

SHIN

STRAP

2шт.

73

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

74

97022010

RING, SNAP

RING SNAP locking, VSK8

2шт.

75

04112555

BLOCK

LUBRICATION rail

1шт.

76

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

77

06116155

NUT,M8, Cl 8

2шт.

78

03640754

LUBE NIPPLE

grease, CM8 x 1 DIN71412

4шт.

79

03436888

FITTING

CONNECTOR male, GERADE GE6-LL/M8 x 1/OMD

4шт.

80

03436871

FITTING

CONNECTOR male, WINKL. WE6-LL/M8 x 1/OMD

4шт.

81

02856095

TUBE

PIPE cpl., 1

1шт.

82

02856101

TUBE

PIPE cpl., 2

1шт.

83

02856118

TUBE

PIPE cpl., 3

1шт.

84

02856126

TUBE

PIPE cpl., 4

1шт.

90

97022012

RING, SNAP

RING SNAP locking, VSK12

2шт.

91

06577003

SPECIAL WASHER

M10

9шт.

92

36249024

ANGLE

flange elbow

2шт.

93

614-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

4шт.

94

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

95

06623992

WASHER

SHIM, 25 x 35 x 0.3 DIN988

10шт.

96

06577011

PLATE, LOCKING

WASHER, M12

2шт.

97

829-1412

NUT,M12, Cl 10.9

6шт.

101

36275130

RESTRICTOR

crop chute

1шт.

102

98046064

HYDRAULIC MOTOR

MPR 80 SH 1A

1шт.

103

98045742

GASKET KIT

SEAL

1шт.

105

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

106

97022010

RING, SNAP

RING SNAP locking, VSK8

2шт.
